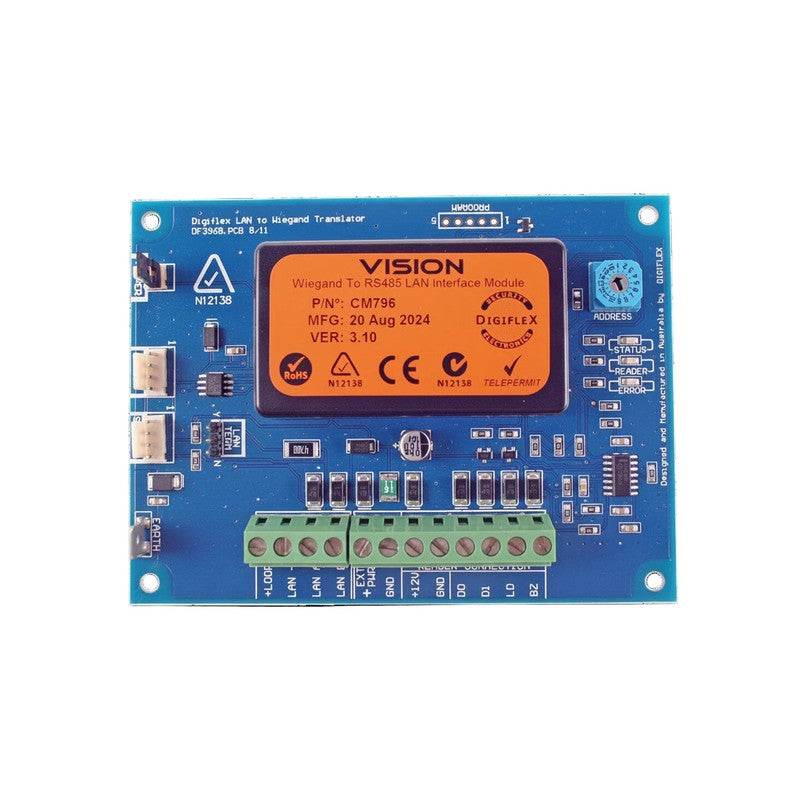

Bosch Solution 6000/ 6000-ip/ 144 Hardwired Wiegand To Rs485 Converter/ Module Blue Pcb Enclosure Mount 100g 10-14vdc Compatable With 26-40 Bit Wiegand Readers
SKU: BOSCM796B
$352.97
The Bosch Solution 6000/6000-IP/144 Hardwired Wiegand to RS485 Converter/Module is a compact interface device designed to bridge legacy Wiegand readers with modern RS485 network infrastructure. This unit features a blue PCB enclosure mount and operates on a 10-14VDC power supply, ensuring reliable signal conversion for access control systems.
Key Features
- Converts hardwired Wiegand signals to RS485 for integration with Bosch Solution 6000 and 6000-IP systems
- Compatible with 26 to 40-bit Wiegand readers
- Operates on a 10-14VDC power supply
- Compact dimensions of 20H x 115W x 86D mm
- Lightweight design weighing approximately 100g
- Blue PCB enclosure mount for secure installation
Technical Specifications
Technical Specifications
| Brand | BOSCH |
| Series | SOLUTION 6000/ 6000-IP/ 144 |
| Wiring | HARDWIRED |
| Device Type | WIEGAND to RS485 CONVERTER/ MODULE |
| Colour | BLUE |
| Material | PCB |
| Mounting | ENCLOSURE MOUNT |
| Weight | 100G |
| Power | 10-14VDC |
| Height(mm) | 20mm |
| Width(mm) | 115mm |
| Depth(mm) | 86mm |
| Warranty | 36 Months |
