Bosch Solution 4000 Hardwired Alarm/ Access Control Panel Black 8 X/16 X Split Zone Expand Up To 32 Zone 5 X Output Expand Up To 32 Zone 2 Areas 64 Users 4 Doors 4 Keypad 512 Events Pcb Enclosure Mount Sdi2 18vac
SKU: BOSICPSOL4P
$169.44

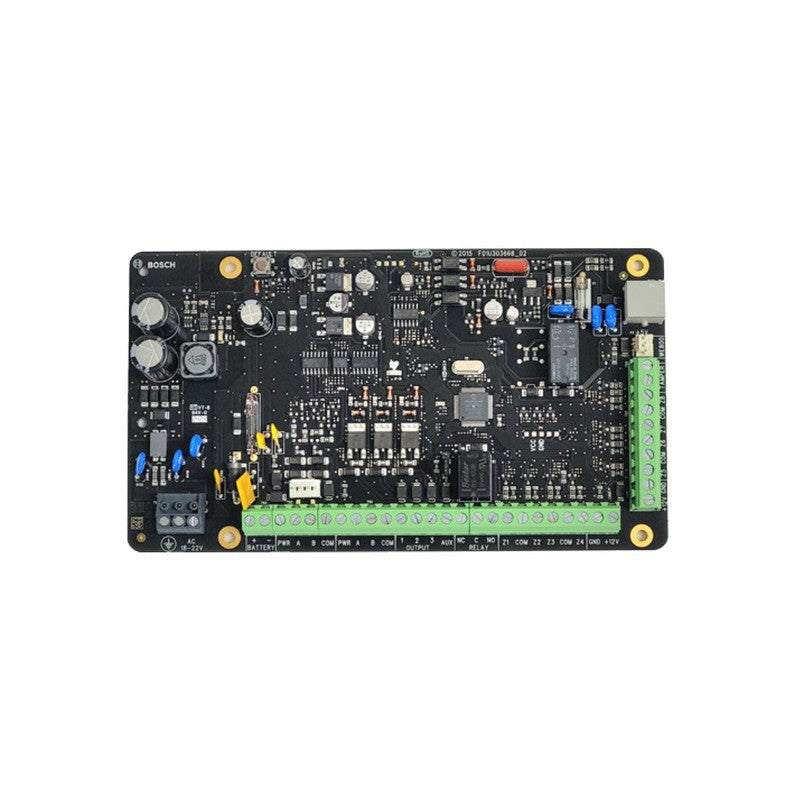

The Bosch Solution 4000 Hardwired Alarm/Access Control Panel is a robust security controller designed for integrated intrusion detection and access management. This black PCB enclosure mount unit supports up to 32 zones and 32 outputs, providing a scalable foundation for comprehensive site protection.
Key Features
- Hardwired alarm and access control panel with 8 x/16 x split zone configuration
- Expandable to a maximum of 32 zones and 32 outputs
- Supports up to 2 areas, 64 users, and 4 doors
- Accommodates 4 keypads and logs 512 events
- PCB enclosure mount design with SDI2 connectivity
- Powered by 18VAC
- Dimensions: 103H x 183W x 28D (mm)
Technical Specifications
Technical Specifications
| Brand | BOSCH |
| Series | SOLUTION 4000 |
| Wiring | HARDWIRED |
| Device Type | ALARM/ ACCESS CONTROL PANEL |
| Colour | BLACK |
| Zone | 8 x/16 x SPLIT ZONE |
| Expandable Zone | EXPAND UP TO 32 ZONE |
| Output | 5 x OUTPUT |
| Expandable Output | EXPAND UP TO 32 ZONE |
| Area | MAX 2 AREAS |
| User | 64 USERS |
| Max Doors | 4 DOORS |
| Max Keypads | 4 KEYPAD |
| Max Events | 512 EVENTS |
| Material | PCB |
| Mounting | ENCLOSURE MOUNT |
| Power | 18VAC |
| Height(mm) | 103mm |
| Width(mm) | 183mm |
| Depth(mm) | 28mm |
| Warranty | 36 Months |
