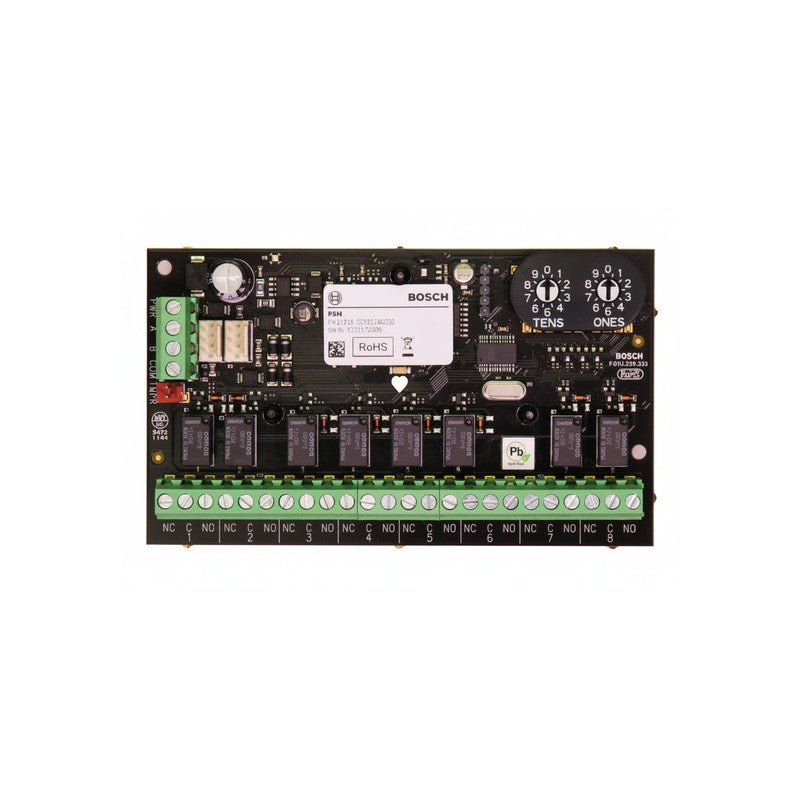

Bosch Solution 2000/ 3000/ 4000/ G-series Hardwired Output Expander Module Black 8 X Output Pcb Enclosure Mount Sdi2 140g 12vdc
SKU: BOSB308
$295.09
The Bosch Solution 2000/ 3000/ 4000/ G-series Hardwired Output Expander Module is a compact PCB enclosure mount device designed to extend the hardwired output capabilities of the Bosch Solution and G-series access control platforms. This black module provides eight output channels and operates on a 12VDC power supply, ensuring reliable integration within existing security infrastructure.
Key Features
- Compatible with Bosch Solution 2000, 3000, 4000, and G-series systems
- Features 8 hardwired output channels
- Utilizes SDI2 communication protocol
- PCB enclosure mount design for flexible installation
- Powered by 12VDC
- Compact dimensions of 73.5H x 127W x 15D mm
- Lightweight construction weighing 140g
- Black finish for discreet integration
Technical Specifications
Technical Specifications
| Brand | BOSCH |
| Series | SOLUTION 2000/ 3000/ 4000/ G-SERIES |
| Wiring | HARDWIRED |
| Device Type | OUTPUT EXPANDER MODULE |
| Colour | BLACK |
| Output | 8 x OUTPUT |
| Material | PCB |
| Mounting | ENCLOSURE MOUNT |
| Weight | 140G |
| Power | 12VDC |
| Height(mm) | 73.5mm |
| Width(mm) | 127mm |
| Depth(mm) | 15mm |
| Warranty | 36 Months |
