Bosch Solution 16i/ 144/ 6000/ 6000-ip Hardwired Lan Power Supply Module Blue Pcb Enclosure Mount 100g 16-18vac *required Power Supply (tf008-b) & 1 X Battery (tb100103) 1a*
SKU: BOSCM720B
$310.02

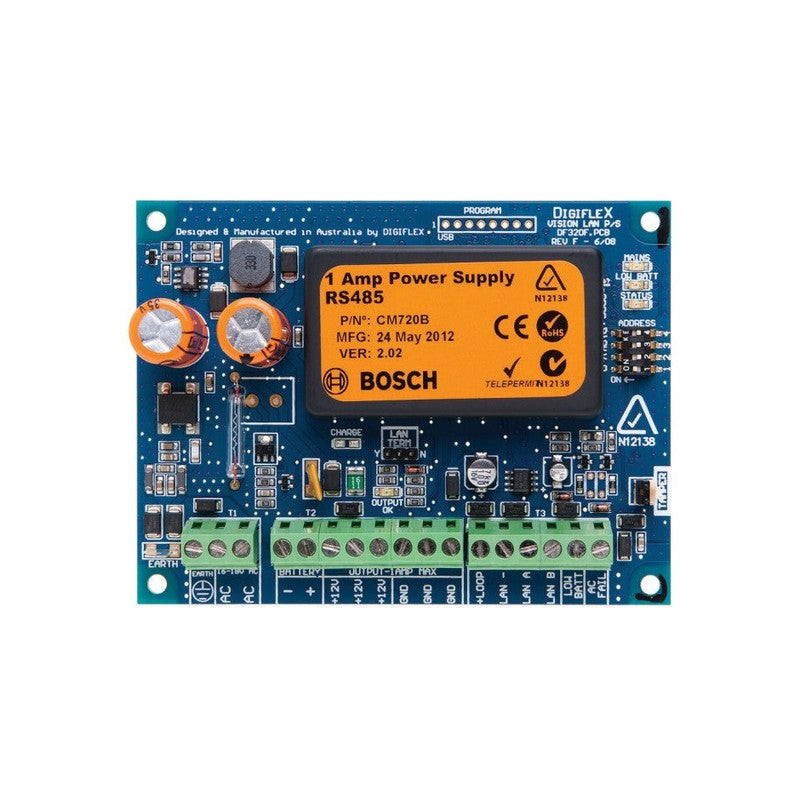

The Bosch Solution 16i/ 144/ 6000/ 6000-ip Hardwired Lan Power Supply Module is a compact enclosure mount unit designed for integration with Bosch access control systems. This 100g module operates on a 16-18VAC input and requires the TF008-B power supply and TB100103 battery for full functionality.
Key Features
- Compatible with Bosch Solution 16i, 144, 6000, and 6000-IP systems
- Hardwired LAN power supply module with blue PCB
- Enclosure mount design with dimensions of 30H x 115W x 86D mm
- Requires TF008-B power supply and one TB100103 1A battery
- Operates on 16-18VAC input voltage
- Lightweight 100g construction for easy installation
Technical Specifications
Technical Specifications
| Brand | BOSCH |
| Series | SOLUTION 16i/ 144/ 6000/ 6000-IP |
| Wiring | HARDWIRED |
| Device Type | LAN POWER SUPPLY MODULE |
| Colour | BLUE |
| Material | PCB |
| Mounting | ENCLOSURE MOUNT |
| Weight | 100G |
| Power | 16-18VAC |
| Height(mm) | 30mm |
| Width(mm) | 115mm |
| Depth(mm) | 86mm |
| Warranty | 36 Months |
