Bosch Commercial Series Hardwired Pir Tritech+ (mw+pir) With Fresnel Optics White Pet Up To 4.5kg 15x15m Detection Area 2 X N/c Output With Tamper Plastic Wall Mount 2.3~2.75m Mount Height 10.525ghz 9-15vdc

Bosch Commercial Series Hardwired Pir Tritech+ (mw+pir) With Fresnel Optics White Pet Up To 4.5kg 15x15m Detection Area 2 X N/c Output With Tamper Plastic Wall Mount 2.3~2.75m Mount Height 10.525ghz 9-15vdc
SKU: BOSCDL2A15G
$158.91

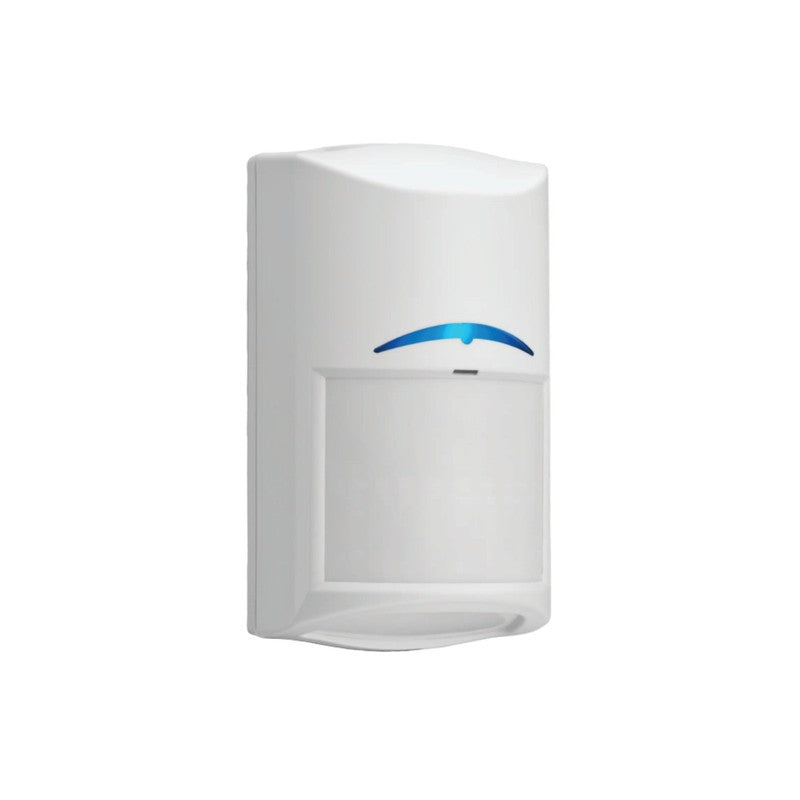

The Bosch Commercial Series Hardwired Pir Tritech+ (mw+pir) With Fresnel Optics White Pet Up To 4.5kg 15x15m Detection Area 2 X N/c Output With Tamper Plastic Wall Mount 2.3~2.75m Mount Height 10.525ghz 9-15vdc is a dual-technology motion detector engineered for reliable commercial security applications. This unit combines microwave and passive infrared sensing with Fresnel optics to provide a consistent 15x15m detection area while maintaining pet immunity for animals up to 4.5kg.

Key Features

  • Dual-technology Tritech+ sensing combining Microwave (10.525GHz) and PIR for enhanced reliability
  • 15x15m detection area optimized for commercial environments
  • Pet immunity for animals up to 4.5kg to reduce false alarms
  • Fresnel optics for precise and consistent coverage
  • Two N/C (Normally Closed) alarm outputs
  • Integrated N/C tamper switch for security against physical interference
  • Designed for plastic wall mounting at a height of 2.3m to 2.75m
  • Operates on a 9-15VDC power supply

Technical Specifications

SpecificationDetails
Frequency 10.525GHz
Voltage 9-15VDC
Colour WHITE
Dimensions 120H x 70W x 55D mm
