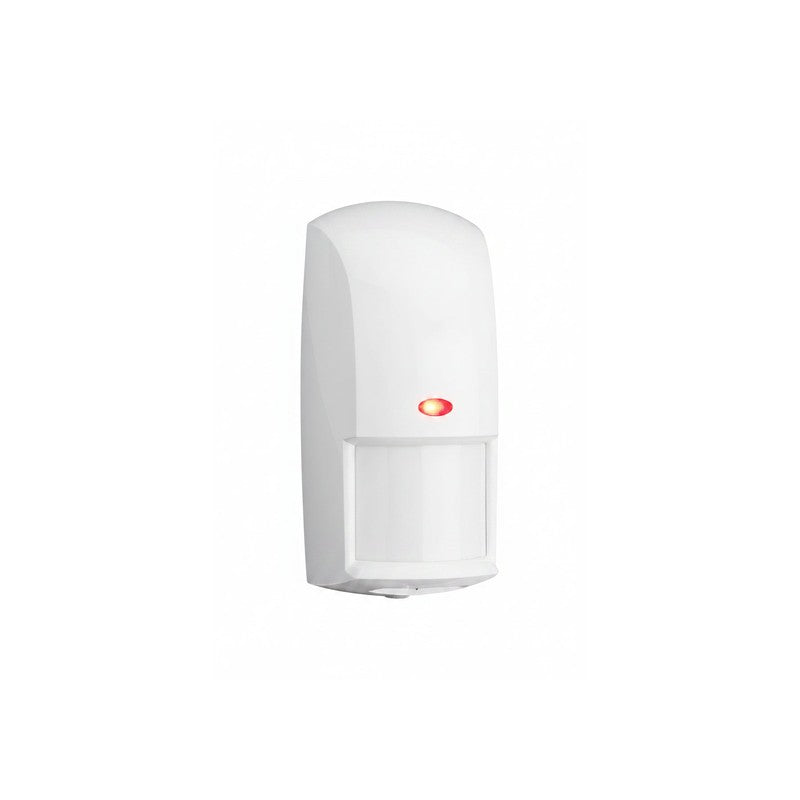

Bosch Classic Series Hardwired Pir Tritech (mw+pir) With Fresnel Optics White 15x15m Detection Area 1 X N/c & 1 X Spdt With Tamper Plastic Wall Mount Ip54 2.1~2.7m Mount Height 10-15vdc

The Bosch Classic Series Hardwired PIR TriTech (MW+PIR) with Fresnel Optics is a dual-technology intrusion detector engineered for reliable perimeter security. This white, wall-mounted unit combines microwave and passive infrared sensing to provide a 15x15m detection area with IP54 environmental protection.

Key Features

• Dual-technology TriTech design integrating Microwave (MW) and Passive Infrared (PIR) sensors
• 15x15m detection area optimized for comprehensive coverage
• IP54 rated enclosure suitable for protected outdoor or harsh indoor environments
• Configurable outputs including 1 x N/C and 1 x SPDT contacts
• Integrated N/C tamper switch for security monitoring
• Requires 10-15VDC hardwired power supply
• Designed for wall mounting at a height of 2.1 to 2.7 meters
• Compact plastic housing with dimensions of 165H x 82.5W x 63.5D mm
