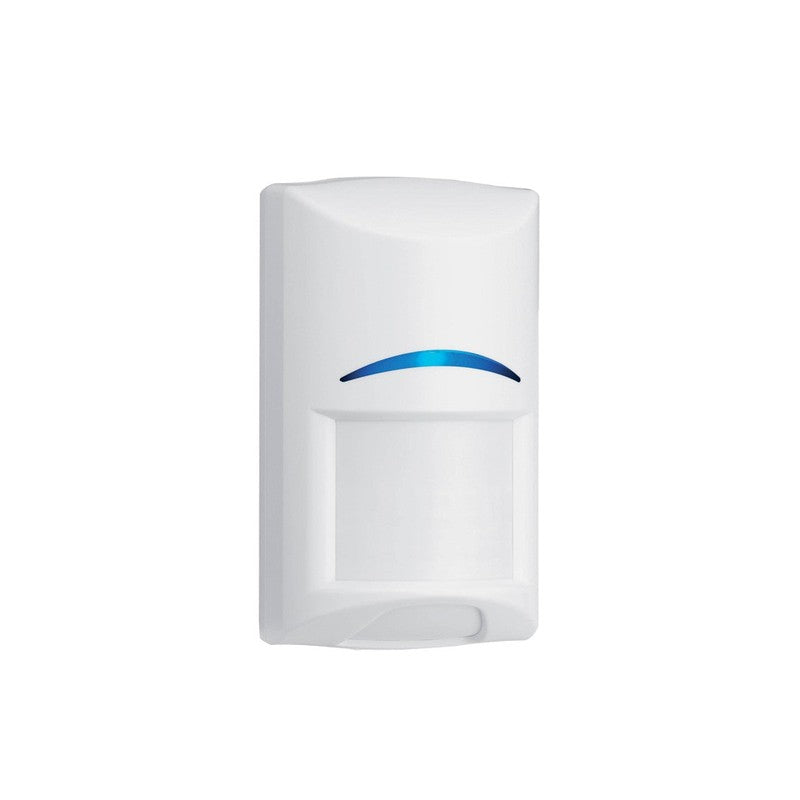

Bosch Blue Line Gen2 Series Hardwired Pir With Fresnel Optics White 12x12m Detection Area 1 X N/c Output (dry) With Tamper Plastic Wall Mount 2.2~2.75m Mount Height 9-15vdc
SKU: BOSISCBPR2W12
$53.61
The Bosch Blue Line Gen2 Series Hardwired PIR with Fresnel Optics is a white, wall-mounted motion detector engineered for precise perimeter and area security. It provides a 12x12m detection zone and operates on a 9-15VDC power supply, ensuring reliable performance within standard alarm system architectures.
Key Features
- 12x12m detection area with Fresnel optics for accurate motion sensing
- Single N/C (dry) output with integrated N/C tamper switch
- Plastic wall mount design with a recommended installation height of 2.2~2.75m
- Operates on a 9-15VDC power supply
- Compact physical dimensions of 105H x 61W x 44D mm
- Hardwired connection for direct integration into security control panels
Technical Specifications
Technical Specifications
| Brand | BOSCH |
| Warranty | 60 Months |
| Series | BLUE LINE GEN2 SERIES |
| Wiring | HARDWIRED |
| Device Type | PIR |
| Colour | WHITE |
| Output | 1 N/C O/P |
| Tamper Alarm | TAMPER (N/C) |
| Display | NONE |
| Mounting | WALL MOUNT |
| Power | 9VDC , MULTI VOLTAGE , 12VDC |
