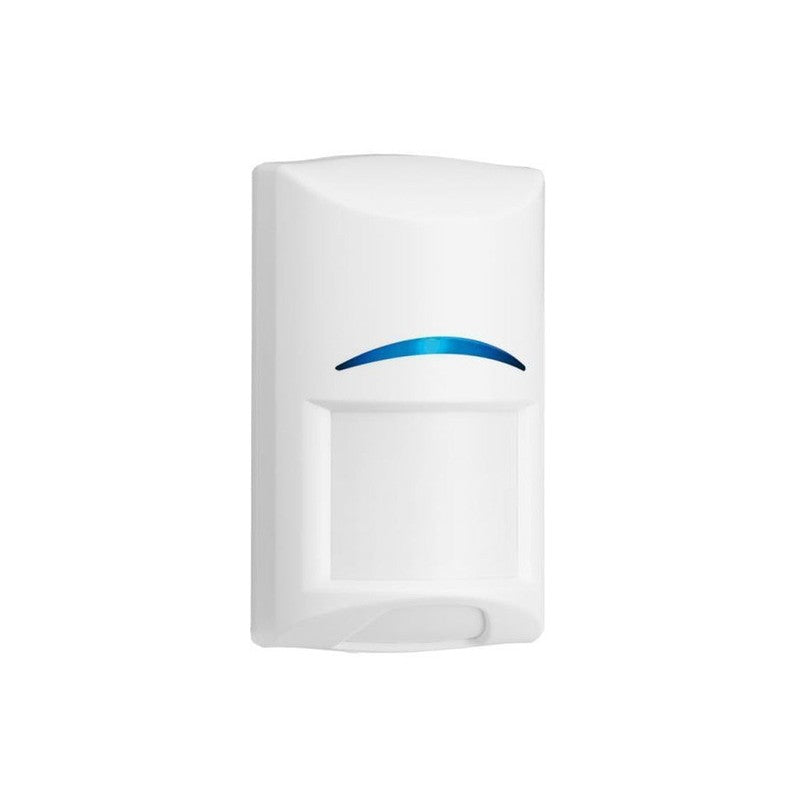

Bosch Blue Line Gen2 Series Hardwired Pir Tritech (mw+pir) With Fresnel Optics White 12x12m Detection Area 1 X N/c Output (dry) With Tamper Plastic Wall Mount 2.2~2.75m Mount Height 10.525ghz 9-15vdc
SKU: BOSISCBDL2W12G
$84.03
The Bosch Blue Line Gen2 Series Hardwired PIR TriTech (MW+PIR) with Fresnel Optics is a dual-technology motion detector engineered for reliable perimeter security. This white, wall-mounted unit integrates microwave and passive infrared sensing to deliver a 12x12m detection area with minimal false alarms.
Key Features
- Dual-technology TriTech design integrating Microwave (10.525GHz) and PIR sensors
- 12x12m detection coverage utilizing Fresnel optics
- Hardwired connection with 9-15VDC operating voltage
- Single N/C dry contact output for alarm integration
- Includes N/C tamper switch for security monitoring
- Plastic wall mount suitable for installation heights between 2.2m and 2.75m
- Compact dimensions of 105H x 61W x 44D (mm)
Technical Specifications
Technical Specifications
| Brand | BOSCH |
| Warranty | 60 Months |
| Series | BLUE LINE GEN2 SERIES |
| Wiring | HARDWIRED |
| Device Type | PIR |
| Colour | WHITE |
| Output | 1 N/C O/P |
| Tamper Alarm | TAMPER (N/C) |
| Display | NONE |
| Mounting | WALL MOUNT |
| Power | 9VDC , MULTI VOLTAGE , 12VDC |
