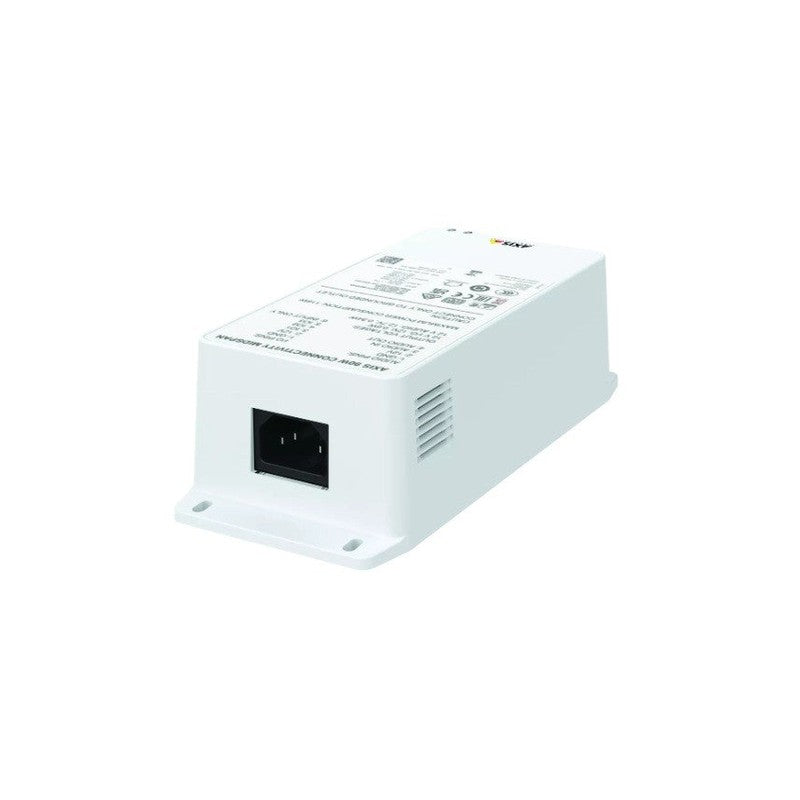

Axis Tu8003 90w POE Midspan | 02027-006
SKU: TU8003
$637.39
The Axis TU8003 90w POE Midspan | 02027-006 is a single-port connectivity injector engineered to transmit Gigabit data and up to 90W of power over a single Ethernet cable. This Axis device complies with the IEEE 802.3bt Type 4 standard, providing the necessary power delivery for high-demand surveillance equipment that exceeds the output capacity of standard network switches.
Key Features
- Delivers up to 90W of power per port in compliance with the IEEE 802.3bt Type 4 standard.
- Backward compatible with IEEE 802.3af and 802.3at powered devices.
- Features Axis Portcast technology to extend audio and I/O connectivity using the connected device's IP address.
- Includes an integrated SFP slot to support fibre network connectivity for long-distance installations.
- Transmits Gigabit data and power over a single Ethernet cable.
- Eliminates the need for additional VMS licensing to access microphone and I/O functionality.
Technical Specifications
| Model | TU8003 |
| Part Number | 02027-006 |
| Product Type | PoE midspan / power injector |
| PoE Standard | IEEE 802.3bt Type 4 (backward-compatible with 802.3af and 802.3at) |
| Maximum Power Output | 90W |
| Output Voltage | 54V DC (max 90W) |
| Data Speed | 10/100/1000 Mbps (Gigabit Ethernet) |
| Input Voltage | 100-240V AC |
| SFP Port | 1 x integrated SFP slot for fibre connectivity |
| Portcast Technology | Yes – audio and I/O accessible via camera IP address in a single network stream |
| Audio Support | Digital and unbalanced microphone input |
| Installation Type | Desktop, shelf, or rack-mounted |
| Brand | Axis Communications |
