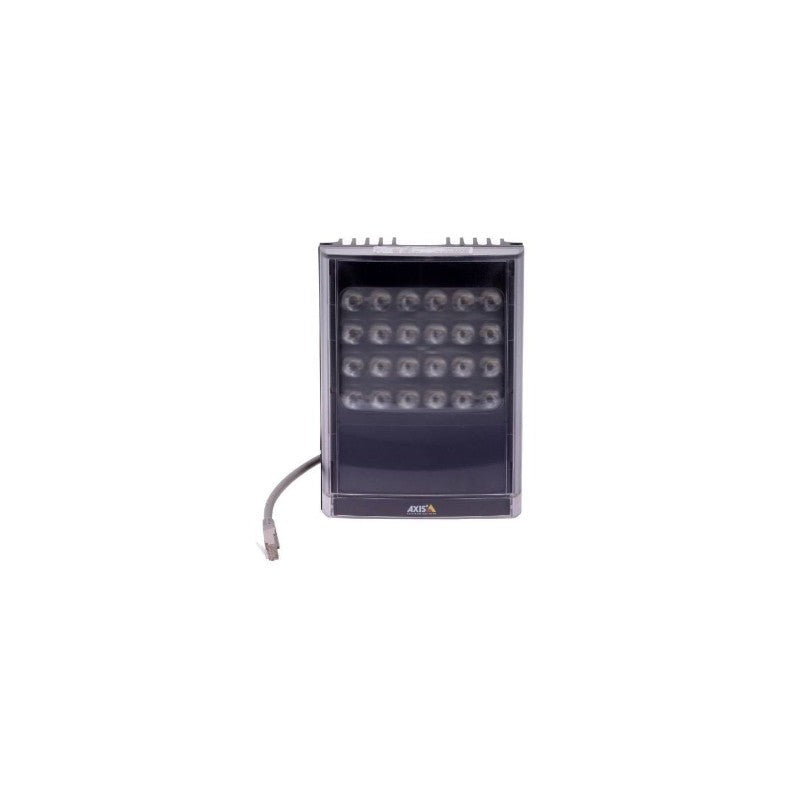

Axis T90d30 Ir-led Illuminator POE To Suit Network Cameras, Interchangeable Lenses
SKU: AXIST90D30
$1,801.59
The Axis T90D30 IR-LED Illuminator is a High Power over Ethernet (PoE) device engineered to extend the effective range of Axis network cameras in low-light conditions. It provides 850nm semi-covert infrared illumination with a maximum reach of 350 meters, utilizing an interchangeable lens system to align the beam angle with the camera's field of view.
Key Features
- Delivers 850nm semi-covert IR illumination with a range of up to 350m using the pre-mounted 10° lens.
- Includes four interchangeable lenses (10°, 35°, 60°, and 80°) to match specific camera fields of view and scene widths.
- Operates entirely over a single Ethernet cable using High Power over Ethernet (PoE) with a maximum draw of 60W.
- Rated IP66, NEMA 4X, and IK09 for durable performance in exposed outdoor, industrial, and commercial environments.
- Engineered to operate across a wide temperature range of -50°C to 50°C.
- Features integrated push buttons and remote control support for post-installation adjustment of power level, photocell sensitivity, and timers.
Technical Specifications
| Model | AXIS T90D30 PoE IR-LED |
| Part Number | 01213-001 |
| Product Type | PoE-Powered Infrared LED Illuminator |
| Illumination Type | 850nm Semi-Covert IR LED |
| Compatible Cameras | Axis cameras with infrared-cut filter |
| Power Input | High Power over Ethernet |
| Maximum PoE Power | 60W |
| Maximum Light Power Consumption | 49W |
| Standby Power Consumption | 2.2W |
| Standard Lens (Pre-Mounted) | 10° x 10° – up to 350m |
| Included Diverging Lenses | 35° x 10° (up to 165m), 60° x 25° (up to 95m), 80° x 30° (up to 70m) |
| Optional Diverging Lens | 120° x 50° – up to 45m (sold separately) |
| Control Options | Integrated push buttons or remote control for power level, photocell sensitivity, and timer |
| Mounting Options | Wall, pole, single bracket, and multi-bracket (compatible Axis accessories) |
| IP Rating | IP66 |
| Environmental Rating | NEMA 4X |
| Impact Rating | IK09 |
| Operating Temperature | -50°C to 50°C |
| Warranty | 5 years |
