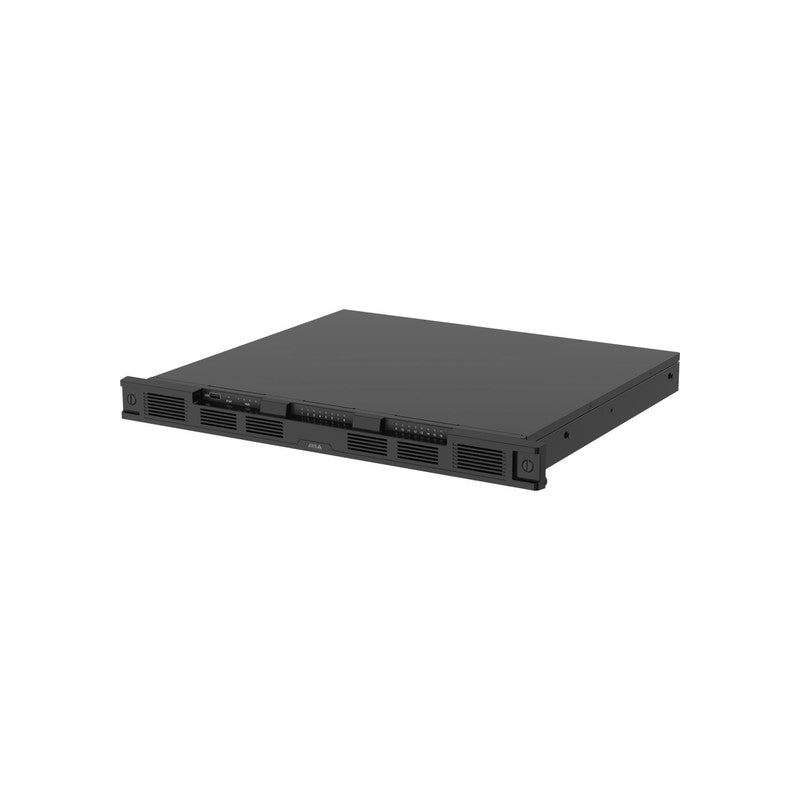

Axis S3016 16tb 1u Rack Recorder , Integrated POE Switch, 16 Channels
SKU: AXISS301616TB
$7,269.00
The Axis S3016 16tb 1u Rack Recorder, Integrated POE Switch, 16 Channels is a consolidated surveillance solution designed for professional rack environments. This unit integrates a 16-channel network video recorder with a 16-port PoE switch within a compact 1U form factor, eliminating the need for separate power delivery hardware.
Key Features
- 16-channel network video recorder (NVR) capability
- Integrated 16-port Power over Ethernet (PoE) switch
- Compact 1U rack-mount form factor
- Includes 16TB of storage capacity
- Direct connection support for up to 16 Axis cameras and compatible network devices
- Consolidates recording and power delivery into a single unit
Technical Specifications
| Model | AXIS S3016 |
| Storage Variant (This SKU) | 16TB |
| Available Storage Options | 8TB, 16TB, 32TB |
| Video Channels | 16 |
| Form Factor | 1U rack-mounted |
| Integrated PoE Switch | 16-port PoE switch |
| Total PoE Power Budget | Up to 305W |
| PoE Class Support | Up to PoE Class 4 per port |
| Hard Drive Bays | 4 |
| Hard Drives Included | Yes, surveillance-grade drives pre-installed |
| RAID Support | RAID 0, 1, 5, 6, 10 |
| Default RAID Level | RAID 5 |
| Validated Recording Bitrate | Up to 256 Mbit/s |
| Network Uplink | 2.5 Gigabit |
| Operating System | AXIS OS |
| Security Features | TPM 2.0, encrypted video storage and transmission |
| VMS Compatibility | AXIS Camera Station Pro, AXIS Camera Station Edge |
| Compliance | NDAA compliant, TAA-designated country production |
| USB Export | USB port for video export |
| Warranty | 5-year Axis warranty |
