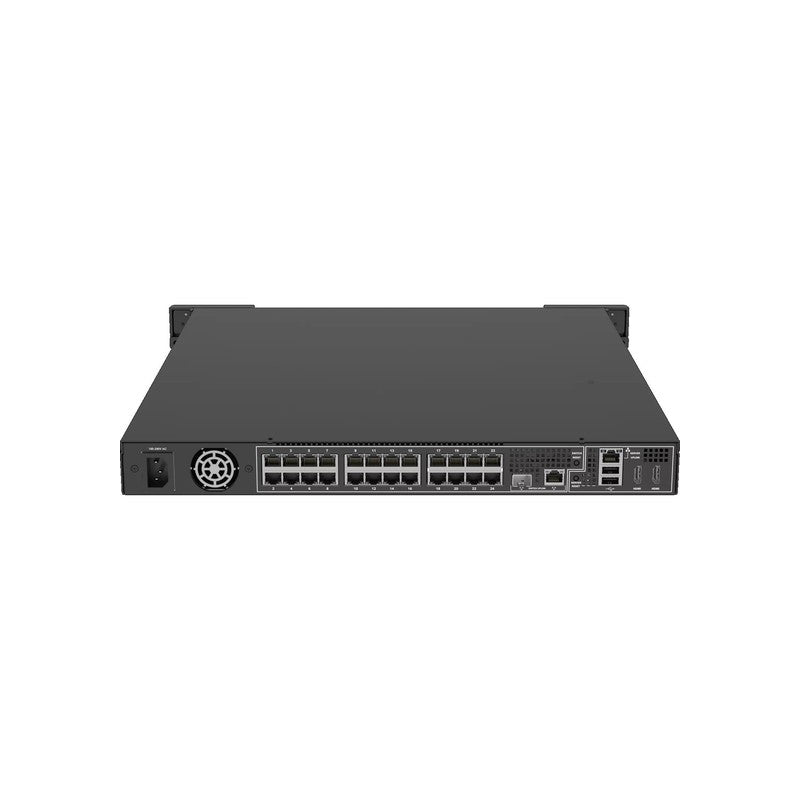

Axis S2224 Mk Ii 12tb Rack Appliance For 24-channel Surveillance With Integrated 24-port POE Switch, Axis Camera Station Pro Licences, Expandable Storage
SKU: S2224MKII24CH12TB
$12,066.00
The Axis S2224 Mk II 12TB is a 1U rack appliance engineered for commercial surveillance environments, consolidating recording, PoE switching, video management, and storage into a single unit. This Axis solution supports 24-channel systems and includes integrated Axis Camera Station Pro licences for streamlined deployment in sites such as warehouses, schools, and manufacturing facilities.
Key Features
- Integrated 24-port PoE+ switch with 260W power budget
- 12TB of integrated storage for 24-channel surveillance
- Includes Axis Camera Station Pro licences
- 1U form factor suitable for standard rack installation
- Consolidates recording, switching, and video management in one appliance
- Expandable storage capacity
Technical Specifications
| Model | AXIS S2224 Mk II 12TB |
| Part Number (AU) | 02810-006 |
| Product Type | Rack-Mounted 24-Channel Surveillance Appliance |
| Form Factor | Rack 1U |
| Validated Video Channels | 24 channels |
| AXIS Camera Station Pro Licences | 24 licences included |
| AXIS Audio Manager Pro Licences | 10 licences included when installing the software to the server |
| Included Storage | 12TB (2 x Surveillance Hard Drive 6TB) |
| Total HDD Bays | 4 bays (2 occupied, 2 free for expansion) |
| Supported RAID Levels | RAID 0, 1, 10 (default: not configured) |
| Integrated PoE Switch | 24-port PoE+ switch |
| Total PoE Output Power | 260W |
| Validated Recording Bitrate | 384 Mbit/s |
| Operating System | Microsoft Windows 11 IoT Enterprise LTSC 2024 |
| Preloaded Software | AXIS Camera Station Pro, AXIS Recorder Toolbox |
| Cloud Storage Support | AXIS Camera Station Cloud Storage supported where configured |
| Cybersecurity | Encrypted OS and recordings, FIPS 140-2 Level 2 certified TPM, secure boot, SBOM, NDAA FY19 compliant, TAA-designated country production, physical network isolation |
| System Expansion | Additional uplink port for expansion using AXIS S30 Recorder Series |
| Warranty | 5-year hardware warranty with Advance Replacement Service |
