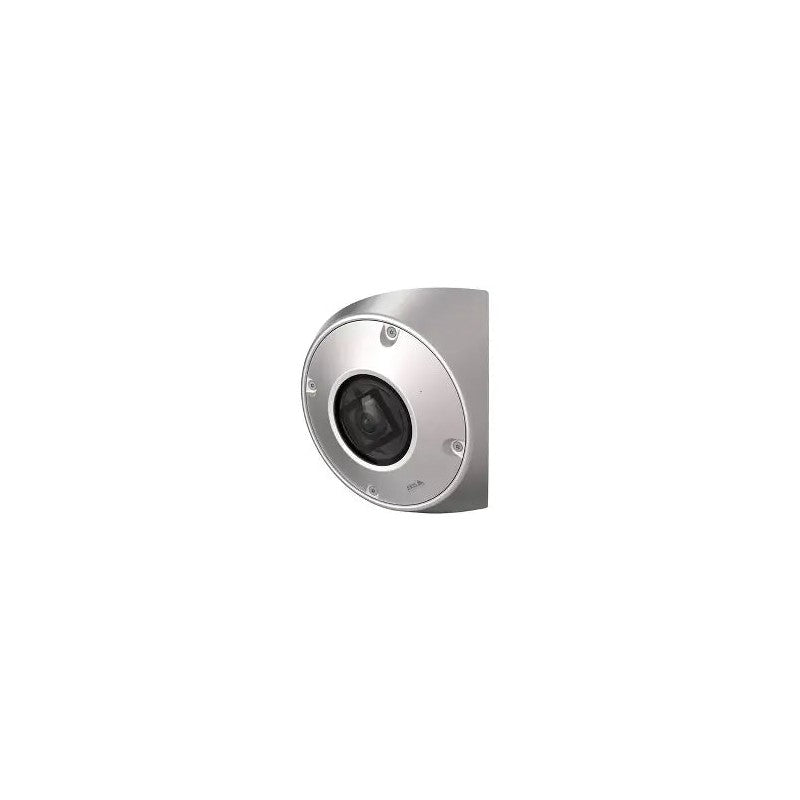

Axis Q9216-slv Anti-ligature Corner-mount IP Camera – 4 Mp, Stainless Steel, Invisible Ir, Ik11, Ip66/ip6k9k

Axis Q9216-slv Anti-ligature Corner-mount IP Camera – 4 Mp, Stainless Steel, Invisible Ir, Ik11, Ip66/ip6k9k
SKU: Q9216SLV
$2,592.51

The Axis Q9216-SLV Anti-ligature Corner-mount IP Camera is a 4 MP surveillance unit engineered for controlled and high-risk indoor environments, including psychiatric facilities and correctional institutions. Its stainless steel housing eliminates protrusions and attachment points, while the corner-mount configuration provides a wide field of view to minimize blind spots from a single position.

Key Features

  • Anti-ligature stainless steel housing designed with no protrusions, grilles, or edges to prevent attachment points in sensitive care settings.
  • 4 MP image sensor with a 125° horizontal and 95° vertical field of view for comprehensive coverage from a corner mount.
  • Invisible 940 nm IR illumination enables full night surveillance at 0 lux without emitting a visible light source that could disturb occupants.
  • IK11 impact resistance rating withstands extreme force, exceeding the standard IK10 vandal rating found on most security cameras.
  • IP66/IP6K9K ingress protection ensures durability against dust, water jets, and high-pressure cleaning.
  • Hardware-rooted cybersecurity features include a TPM 2.0 module and signed firmware for secure operation on institutional networks.
  • Power over Ethernet (PoE) connectivity for simplified installation and power management.

Technical Specifications

Image Resolution 4 MP (2304 x 1728) at up to 30 fps
Sensor 1/2.5″ progressive-scan RGB CMOS
Field of View 125° horizontal x 95° vertical
IR Illumination Invisible IR, 940 nm; 0 lux minimum illumination
Wide Dynamic Range WDR supported
Video Compression H.264, H.265 with Axis Zipstream
Housing Type Anti-ligature corner-mount, stainless steel
Impact Rating IK11
Ingress Protection IP66 / IP6K9K
Audio Built-in removable microphone
Privacy Controls Polygonal privacy masking; indication LED
Alarm Inputs Tampering detection, shock detection
Cybersecurity TPM 2.0 (FIPS 140-2 Level 2), signed firmware
Power PoE (IEEE 802.3af/at)
Network Interface RJ45, 10/100 Mbps
Video Output HDMI output for direct local display
Part Number 01766-001
