Axis Q8752-e Mk Ii Bispectral PTZ Camera | Thermal & Visual Surveillance
SKU: Q8752E
$62,009.79

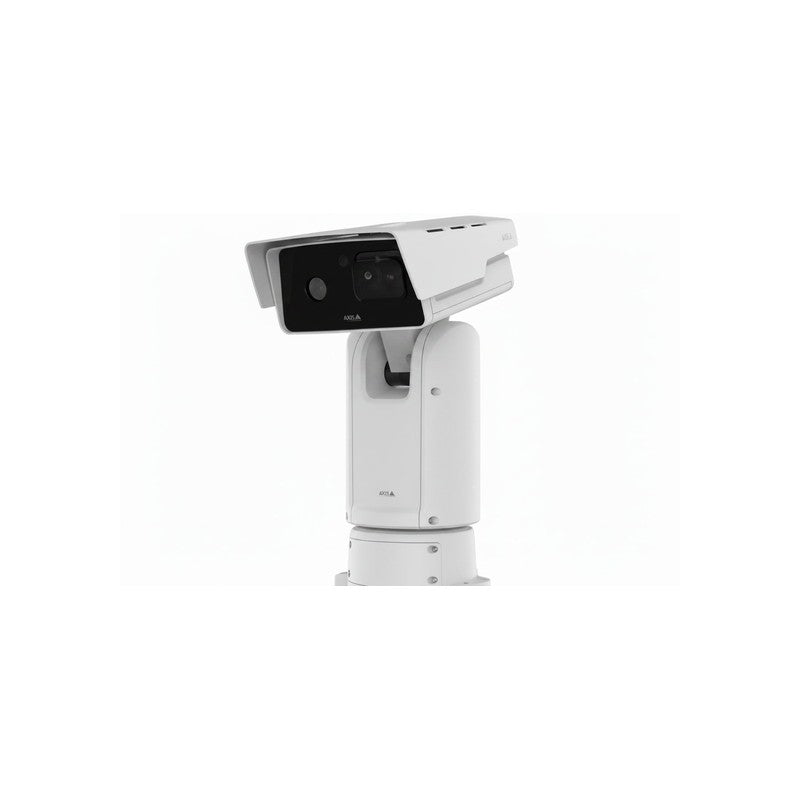

The Axis Q8752-e Mk Ii Bispectral PTZ Camera integrates a thermal imaging sensor and a high-resolution visual camera within a single outdoor housing, designed for perimeter surveillance in environments where visible light is insufficient. This dual-channel system provides continuous detection of heat signatures alongside colour video for evidentiary recording, ensuring reliable monitoring regardless of ambient lighting or atmospheric conditions.
Key Features
- Bispectral dual-channel imaging with simultaneous thermal and visual streams for detection and assessment
- 360-degree endless pan and -90 to +45 degree tilt range for uninterrupted perimeter coverage
- Lightfinder 2.0 and Forensic WDR technology to enhance visual clarity in challenging lighting
- IP66, IK10, and NEMA TS2 ratings for durability in demanding outdoor environments
- Hardware cybersecurity features including signed firmware, secure boot, and a TPM 2.0 module
- Motorised zoom lens options for the thermal channel to adjust field of view
Technical Specifications
| Product Model | AXIS Q8752-E Mk II Bispectral PTZ Camera |
| SKU | Q8752-E |
| Imaging Type | Bispectral: thermal sensor and visual camera combined in a single PTZ housing |
| Pan Range | 360-degree endless pan (no mechanical stop) |
| Tilt Range | -90 to +45 degrees |
| Thermal Lens – Zoom Variants | 35-105 mm motorised zoom (part numbers 03050-001 and 03051-001) |
| Thermal Lens – Fixed Variants | Fixed 35 mm (part numbers 03052-001 and 03053-001) |
| Frame Rate Options | 8.3 fps (export-compliant variants) or 30 fps (full frame rate variants) |
| Visual Channel Features | Lightfinder 2.0, Forensic WDR |
| Weather Protection | IP66 |
| Impact Rating | IK10 |
| Standards Compliance | NEMA TS2 |
| Cybersecurity | Signed firmware, secure boot, TPM 2.0 module |
| Available Part Numbers | 03050-001, 03051-001, 03052-001, 03053-001 |
| Housing Type | Outdoor PTZ dome, designed for perimeter and wide-area installation |
