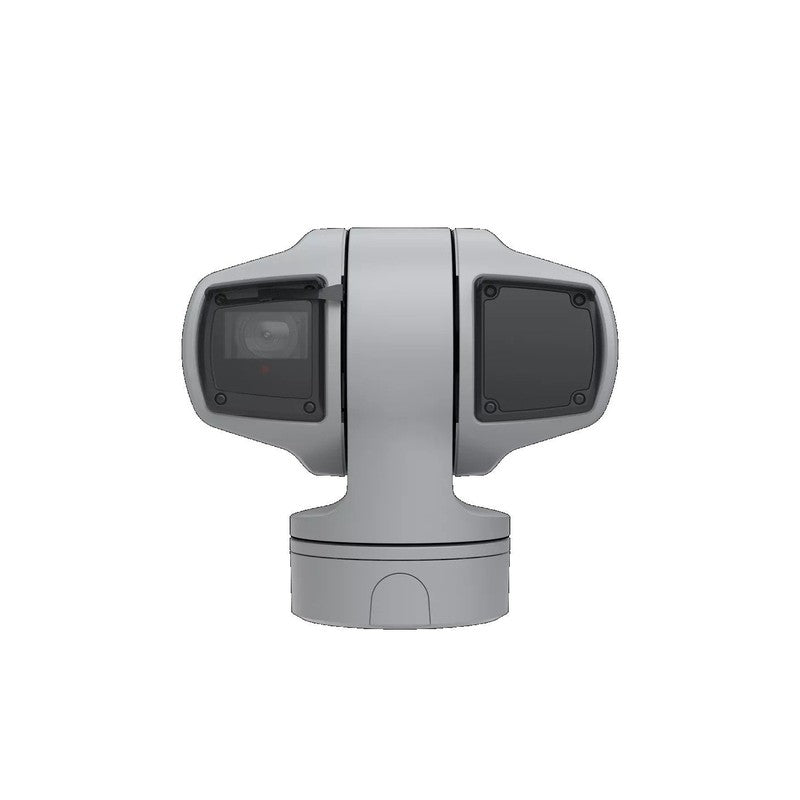

The Axis Q6225-le PTZ 31x Optical Zoom Heavy-duty PTZ Camera With Long-range IR 02316-301 is a robust surveillance unit designed for wide-area coverage and long-range subject identification in extreme environmental conditions. This Axis camera utilizes a 31x optical zoom lens and optimized IR illumination to maintain high-definition imaging and even frame exposure across distances up to 400 metres.
Key Features
- 31x optical zoom lens spanning 6.91 to 214.64 mm with a horizontal field of view from 63.8 degrees to 2.2 degrees
- 1/2″ progressive-scan CMOS sensor supporting HDTV 1080p resolution at up to 60 fps
- Optimized IR illumination with dynamic beam scaling for even exposure at ranges up to 400 metres
- Lightfinder 2.0 technology enabling colour imaging in near-darkness from approximately 0.05 lux
- Forensic WDR managing high-contrast scenes with a dynamic range of up to 120 dB
- Onboard ARTPEC-7 chipset supporting AXIS Autotracking 2, Object Analytics, and Guard Suite for edge-based person and vehicle classification
- IP66, IP68, and IK10 rated housing with Arctic Temperature Control for operation at -50 degrees C and wind resistance to 245 km/h
Technical Specifications
| Resolution | HDTV 1080p (Full HD) |
| Sensor | 1/2″ progressive-scan CMOS |
| Frame Rate | Up to 60 fps |
| Optical Zoom | 31x |
| Focal Length | 6.91-214.64 mm |
| Horizontal Field of View | 63.8 degrees (wide) to 2.2 degrees (tele) |
| IR Illumination Range | Up to 400 m (Optimized IR, beam angle and intensity auto-scaled with zoom level) |
| Minimum Illumination | Approximately 0.05-0.08 lux colour (Lightfinder 2.0) |
| Wide Dynamic Range | Forensic WDR, up to 120 dB |
| Video Compression | H.265, H.264, Motion JPEG with Axis Zipstream |
| Pan Range and Speed | Continuous 360 degrees, up to 150 degrees/s |
| Tilt Range | Plus or minus 90 degrees |
| Preset Positions | Up to 300 |
| Image Stabilisation | Electronic Image Stabilisation (EIS) |
| Onboard Analytics | AXIS Object Analytics, AXIS Guard Suite, AXIS Autotracking 2 |
| Chipset | ARTPEC-7 |
| Weather and Impact Rating | IP66/IP68, IK10, NEMA 4X, NEMA TS-2, MIL-STD-810G |
| Operating Temperature | -50 degrees C to +55 degrees C (Arctic Temperature Control included) |
| Wind Resistance | Up to 245 km/h (certified) |
| Power | PoE+ (IEEE 802.3at) or DC |
| Local Storage | Encrypted microSD card, remote NAS |
| Cybersecurity | Secure boot, signed firmware, FIPS 140-2 Level 2 TPM |
| Protocols | ONVIF Profiles G/S/T, ACAP, VAPIX API |
