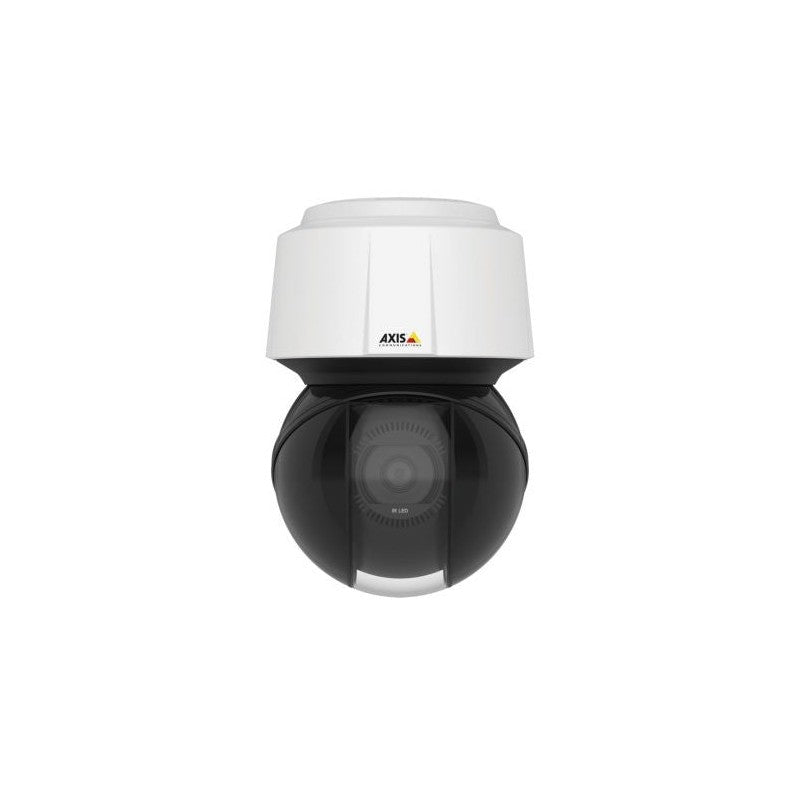

Axis Q6135-le 2MP PTZ Camera, H.264/65, 32x Zoom, 50hz, Wdr, Ip66, Nema 4x & Nema Ts2 01958-006
SKU: Q6135LE
$5,524.53
The Axis Q6135-le 2MP PTZ Camera is an outdoor surveillance unit engineered for wide-area monitoring in demanding environments such as ports, transit hubs, and open perimeters. It delivers HDTV 1080p resolution at up to 60 fps from a 1/2.8-inch progressive-scan CMOS sensor, combining robust environmental protection with advanced low-light imaging capabilities.
Key Features
- 32x optical zoom with a varifocal lens range of 4.3 to 137.6 mm, providing a combined 384x zoom capability with 12x digital enhancement.
- Lightfinder 2.0 technology enables colour imaging at approximately 0.06 lux, while optimised IR illumination extends monochrome capture to approximately 250 metres.
- Autotracking 2 with click-to-track functionality allows the camera to automatically follow moving subjects within operator-defined zones.
- Sharpdome technology extends the usable tilt range to 20 degrees above the horizon without image degradation.
- Rated IP66, IP67, IK10, NEMA 4X, and NEMA TS2 for protection against dust, water, and physical impact.
- Arctic temperature control enables reliable startup and operation at temperatures as low as -50 degrees Celsius.
- Supports H.264 and H.265 video compression standards for efficient network bandwidth usage.
Technical Specifications
| Resolution | 2MP HDTV 1080p |
| Image Sensor | 1/2.8-inch progressive-scan CMOS |
| Frame Rate | Up to 60 fps at 1080p |
| Optical Zoom | 32x optical (12x digital, 384x combined) |
| Lens Range | 4.3 to 137.6 mm, F1.4 to F4.0 |
| Horizontal Field of View | 58.3 degrees (wide) to 2.4 degrees (tele) |
| Low-Light Performance | Lightfinder 2.0 – colour imaging from approximately 0.06 lux |
| IR Illumination Range | Optimised IR up to approximately 250 metres |
| WDR | Forensic WDR up to 120 dB |
| Pan Range and Speed | Continuous 360 degrees, up to 700 degrees/second |
| Tilt Range and Speed | +20 degrees to -90 degrees, up to 500 degrees/second |
| Presets and Tours | 256 preset positions, guard tours, tour recording, zoom queues |
| Analytics | AXIS Object Analytics, Guard Suite (motion detection, loitering guard, fence guard, object removal) |
| Autotracking | Autotracking 2 with click-to-track |
| Video Compression | H.265, H.264, Motion JPEG with Axis Zipstream |
| Local Storage | Encrypted microSD, NAS support |
| Power | PoE+ (IEEE 802.3at, Class 4) or AC |
| Environmental Ratings | IP66, IP67, IK10, NEMA 4X, NEMA TS2 |
| Operating Temperature | -50 degrees Celsius to +50 degrees Celsius (Arctic temperature control) |
| Cybersecurity | Secure boot, signed firmware, TPM (FIPS 140-2 Level 2 certified) |
