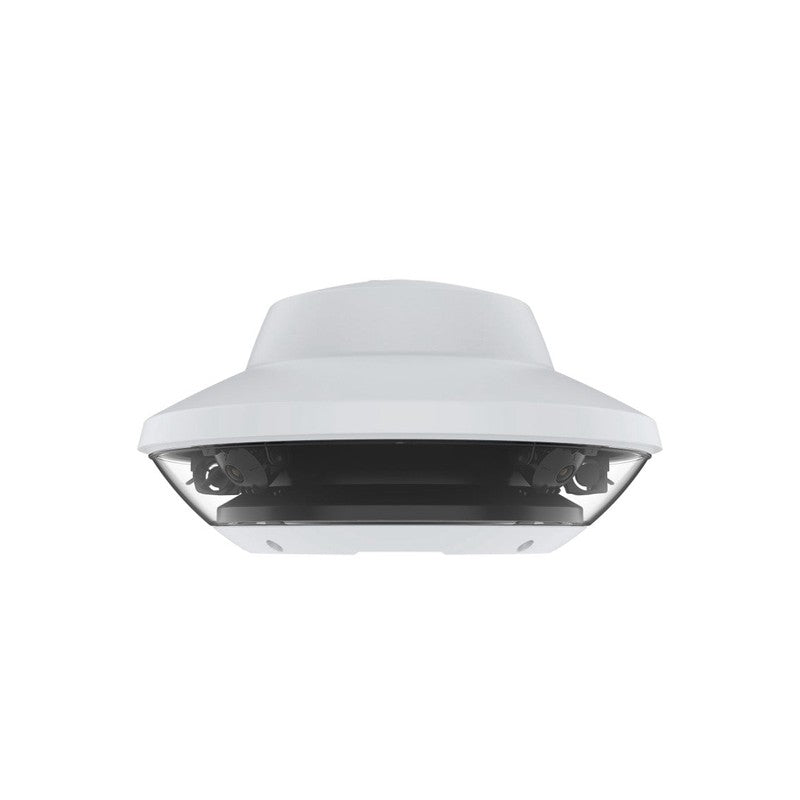

Axis Q6010-e 4x 5MP PTZ Dome Camera, 50hz, 20fps, H.265 01980-001
SKU: Q6010E
$3,356.52
The Axis Q6010-e 4x 5MP PTZ Dome Camera is a panoramic surveillance solution that integrates four 5MP sensors to generate a single 20MP view with full 360° coverage. Designed for outdoor environments, this device facilitates seamless transitions from wide-area monitoring to close-up detail when paired with Axis Q60-E PTZ cameras.
Key Features
- Four independent 5MP sensors deliver a combined 20MP panoramic view with full 360° coverage
- One-click PTZ integration allows direct control of connected Axis Q60-E cameras from the panoramic overview
- Automatic motion tracking enables the connected PTZ camera to follow detected targets across the viewing area
- H.265 and Axis Zipstream compression optimize bandwidth and storage for simultaneous high-resolution streaming
- IP66 and IK10 rated housing ensures durability in demanding outdoor conditions
- Operates within a temperature range of -50°C to +50°C
- Optimized for 50Hz environments with a 20fps frame rate
Technical Specifications
| Image Sensors | 4x 5MP progressive scan CMOS |
| Combined Resolution | 20MP (4x 2592 x 1944 pixels) |
| Frame Rate | 20fps at maximum resolution (50Hz) |
| Lens | Fixed 2.8mm, exchangeable, one per sensor |
| Field of View | 360° combined panoramic coverage |
| Video Compression | H.265, H.264, Axis Zipstream |
| Video Format | Corridor format supported |
| Day/Night | Yes, with Wide Dynamic Range (WDR) |
| Weather Rating | IP66 |
| Vandal Rating | IK10 |
| Operating Temperature | -50°C to +50°C |
| Edge Storage | microSD/SDHC/SDXC slot |
| PTZ Integration | Compatible with AXIS Q60-E series PTZ cameras; one-click PTZ control and autopilot auto-tracking |
| Analytics | Motion detection, tampering alarm; optional Guard Suite (fence-crossing, loitering detection) |
| ONVIF Compliance | Profiles G, S, T |
| Mounting | Shares bracket system with AXIS Q60-E PTZ cameras; RJ45 push-pull connector for IP66 sealing |
| Product Status | Discontinued; hardware support to May 2031, software support to May 2030 |
