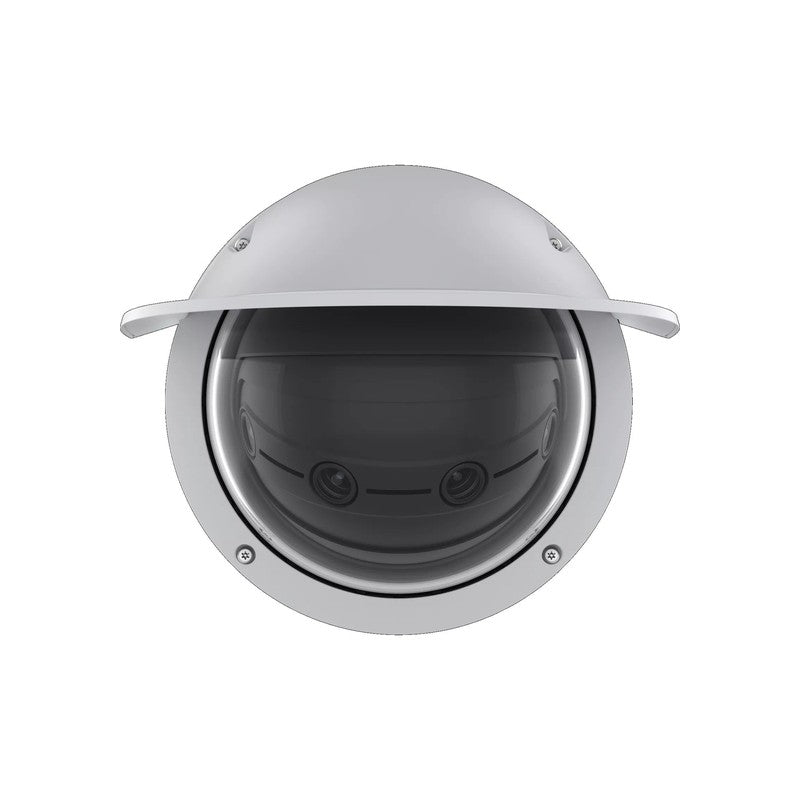

Axis Q4809-pve 26mp 10k AI Panoramic Multisensor Camera With 180° Coverage
SKU: Q4809PVE
$5,214.99
The Axis Q4809-pve 26mp 10k AI Panoramic Multisensor Camera With 180° Coverage is a 26MP 10K multisensor panoramic camera engineered for demanding professional outdoor installations. It combines four stitched sensor images into a seamless 10240 x 2560 resolution output at 30fps, delivering high pixel density across a broad 180° scene through a single IP address and cable run.
Key Features
- 26MP 10K panoramic resolution up to 10240 x 2560 at 30fps
- Seamless 180° horizontal and 45° vertical coverage via four stitched sensors
- Edge AI with a dedicated deep learning processing unit for AXIS Object Analytics, Scene Metadata, and Video Motion Detection
- Lightfinder 2.0 and Forensic WDR for usable image quality in low-light and mixed-lighting conditions
- IP66, IP67, and IK10 ratings for durability in city surveillance, transport hubs, and commercial perimeters
- Remote pan, tilt, and roll adjustment with lossless zoom and horizon straightening
Technical Specifications
| Product Type | Outdoor panoramic multisensor network camera. |
| Model | AXIS Q4809-PVE. |
| Brand | Axis Communications. |
| Resolution Class | 26MP, 10K panoramic. |
| Maximum Video Resolution | 10240 x 2560. |
| Maximum Frame Rate | 30fps. |
| Image Sensor | 1/2.3″ CMOS. |
| Multisensor Design | Four images stitched into one seamless panoramic overview through one IP address. |
| Horizontal Field of View | 180°. |
| Vertical Field of View | 45°. |
| Focal Length | 5.05mm. |
| Minimum Illumination | Colour: 0.1 lux; black and white: 0.03 lux. |
| Low-Light Technology | Lightfinder 2.0. |
| Wide Dynamic Range | Forensic WDR. |
| Day and Night | Supported. |
| Built-In IR | Not included. |
| Lossless Zoom | Supported. |
| Horizon Straightening | Supported. |
| Remote Pan, Tilt and Roll | Built-in motors support remote adjustment for installation alignment. |
| AI Processing | Deep learning processing unit via dual Axis system-on-chip. |
| Included Analytics | AXIS Object Analytics, AXIS Scene Metadata, AXIS Video Motion Detection. |
| Analytics Capabilities | Detect, classify, track and count humans and vehicle types. |
| Video Compression | H.264 (Baseline, Main, High), H.265, Zipstream. |
| Audio Support | Supported via compatible audio accessories or connectivity devices. |
| Local Storage | Memory card slot supported. |
| Cybersecurity | Axis Edge Vault, signed OS, secure boot. |
| IP Rating | IP66 and IP67. |
| Vandal Rating | IK10. |
| Operating Temperature | -40°C to 50°C. |
| Sustainability | BFR/CFR free and PVC free. |
