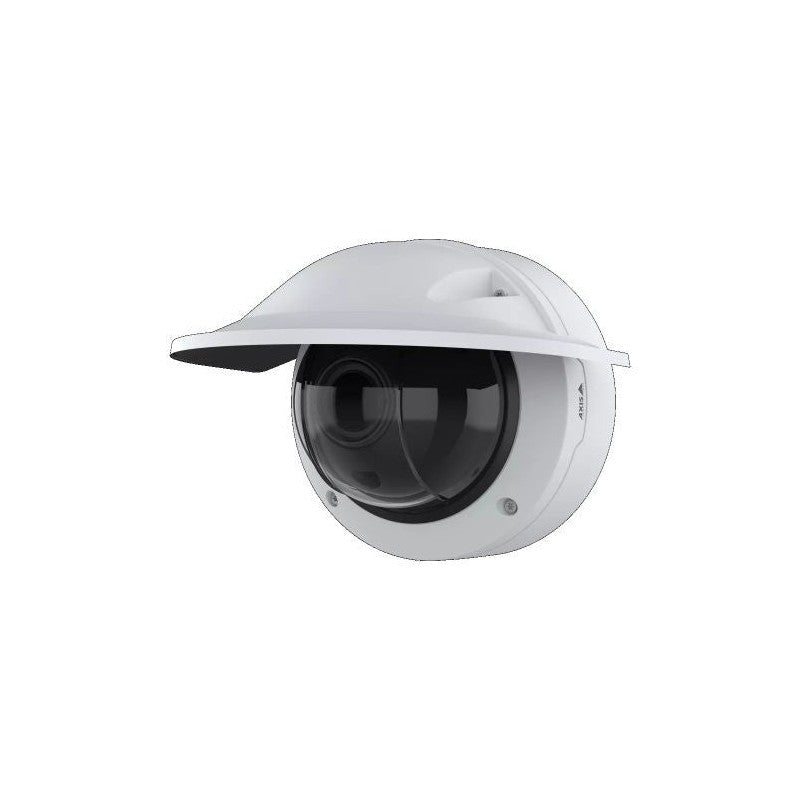

Axis Q3546-lve 4MP Ai-powered Dome Camera With Varifocal Lens, Lightfinder 2.0, Forensic Wdr, Optimizedir, Ip66/ik10 Rating
SKU: Q3546LVE
$2,924.79
The Axis Q3546-lve 4MP Ai-powered Dome Camera With Varifocal Lens, Lightfinder 2.0, Forensic Wdr, Optimizedir, Ip66/ik10 Rating is a 4MP AI-powered dome camera engineered for commercial and industrial environments requiring precise surveillance coverage. It features a rugged IP66/IK10 housing and offers two varifocal lens options to accommodate both wide-area and long-distance monitoring needs.
Key Features
- Dual varifocal lens options: 4.7-10mm for wider coverage or 13-51mm for long-distance monitoring, both supporting remote zoom and focus.
- 4MP high frame rate imaging with a 1/1.8″ CMOS sensor, capturing up to 2688 x 1512 resolution at 100/120fps for fast-moving activity.
- Lightfinder 2.0 technology preserves colour detail in near-darkness, while Forensic WDR manages high-contrast scenes such as vehicle headlights.
- OptimizedIR with an IR-shielded dome maintains clear night vision performance in rain and snow conditions.
- Powered by the ARTPEC-9 processor with a deep learning processing unit, enabling AXIS Object Analytics and AI-powered edge analytics.
- Includes electronic image stabilisation to handle vibration-prone locations and Axis Edge Vault for enhanced cybersecurity.
- IP66/IK10 rating ensures durability for exposed outdoor perimeters, critical infrastructure, and transport sites.
Technical Specifications
| Model | AXIS Q3546-LVE |
| Product Type | AI-Powered Outdoor Dome Network Camera |
| Resolution | 4MP, 2688 x 1512 |
| Maximum Frame Rate | 100/120fps |
| Image Sensor | 1/1.8″ CMOS |
| System-on-Chip | ARTPEC-9 with built-in deep learning processing unit |
| Lens Options | 4.7-10mm varifocal (10mm variant, part no. 02971-001) or 13-51mm varifocal tele lens (51mm variant, part no. 02972-001) |
| Horizontal Field of View | 101.8°-44.0° (10mm variant) / 33.1°-8.5° (51mm variant) |
| Optical Zoom | 2.17x (10mm variant) / 3.81x (51mm variant) |
| Remote Zoom and Focus | Yes, both variants |
| Minimum Illumination | 0.01/0.04 lux colour (variant dependent); 0 lux black and white |
| Low-Light Technology | Lightfinder 2.0 |
| Wide Dynamic Range | Forensic WDR |
| IR Technology | OptimizedIR with IR-shielded dome design |
| Electronic Image Stabilisation | Yes |
| Compression | AV1, H.264, H.265, Axis Zipstream |
| Onboard Analytics | AXIS Object Analytics, AXIS Image Health Analytics, AXIS Live Privacy Shield, AXIS Scene Metadata, AXIS Video Motion Detection |
| Supported Analytics Apps | AXIS License Plate Verifier and AXIS Perimeter Defender supported where suitable |
| Alarm I/O | 2 inputs/outputs |
| Power | PoE Class 4; DC power support; power redundancy supported |
| IP Rating | IP66, IP6K9K |
| Vandal Rating | IK10 |
| Environmental Rating | NEMA 4X |
| Operating Temperature | -50°C to 55°C |
| Cybersecurity | Axis Edge Vault, FIPS 140-3 Level 3 certified secure cryptographic key storage, secure boot, signed OS, HTTPS, IEEE 802.1X |
| Local Storage | Memory card slot supported |
| Warranty | 5 years |
