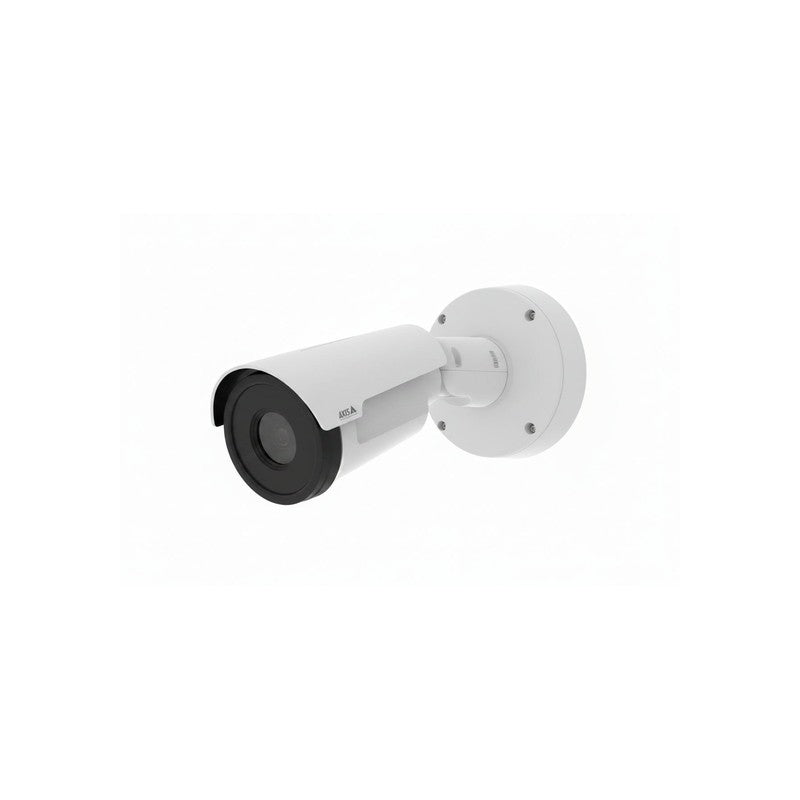

Axis Q1971-e Thermal Camera – High-sensitivity 24/7 Perimeter Detection & Verification 02953-001
SKU: Q1971E
$6,254.38
The Axis Q1971-e Thermal Camera is an outdoor thermal bullet camera engineered for high-sensitivity 24/7 perimeter detection and verification. Utilizing an uncooled microbolometer sensor, it captures heat signatures to reliably detect people, vehicles, and objects in conditions where visible-light cameras are ineffective, such as darkness, fog, or heavy rain.
Key Features
- Uncooled microbolometer sensor with thermal sensitivity of less than 20 mK NETD at 25°C and an F1.0 aperture
- Thermal resolution of 384 x 288 pixels for detailed heat signature capture
- Available in five focal length options: 7, 13, 19, 25, and 35 mm to match specific detection distances
- On-board analytics including Motion Guard, Fence Guard, and Loitering Guard for immediate zone-based alerts
- Support for Axis Perimeter Defender to enable high-confidence classification of humans versus vehicles
- Electronic Image Stabilisation (EIS) to compensate for vibration and wind movement
- Robust outdoor construction with IP66/67, IK10, NEMA TS2, and NEMA 4X ratings
Technical Specifications
| Model | AXIS Q1971-E |
| Sensor Type | Uncooled microbolometer |
| Thermal Sensitivity (NETD) | Less than 20 mK at 25 degrees C |
| Lens Aperture | Approximately F1.0 |
| Thermal Resolution | 384 x 288 |
| Available Focal Lengths | Approximately 7 mm, 13 mm, 19 mm, 25 mm, 35 mm |
| Frame Rate Options | 8.3 fps or 30 fps (variant dependent) |
| Electronic Image Stabilisation | Yes |
| Built-in Analytics | Motion Guard, Fence Guard, Loitering Guard |
| Advanced Analytics Support | Axis Perimeter Defender (human and vehicle classification) |
| Thermal Palettes | Multiple palettes available including false colour |
| IP Rating | IP66 / IP67 |
| Impact Rating | IK10 |
| NEMA Ratings | NEMA TS2, NEMA 4X |
| Active Illumination Required | No |
| Cybersecurity | Axis Edge Vault: secure boot, signed OS, secure key handling |
| Materials | Halogen-free |
