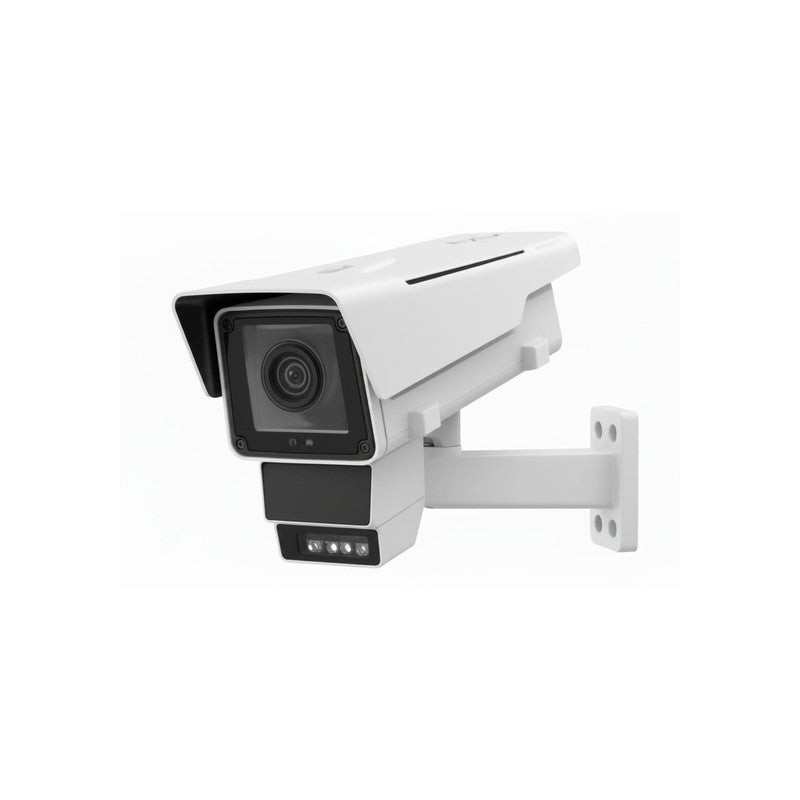

Axis Q1686-dle Radar-video Fusion Camera 02968-001

The Axis Q1686-dle Radar-video Fusion Camera 02968-001 is a ruggedised traffic enforcement unit that integrates 60 GHz radar with 4 MP video for high-speed vehicle monitoring. Designed for highways, toll stations, and port perimeters, it processes radar, video, and license plate metadata entirely on the edge to track speeds up to 200 km/h without external server dependency.

Key Features

• Integrated 60 GHz radar sensor tracks vehicle speed up to 200 km/h and detects direction of travel with real-time on-device fusion.
• 1/1.8″ CMOS sensor equipped with Lightfinder 2.0 and Forensic WDR for reliable license plate capture in low-light and high-contrast conditions.
• Dedicated IR illumination enables legible license plate imaging in total darkness at distances up to approximately 50 m.
• Motorised varifocal 9-50 mm lens with remote zoom, autofocus, and P-Iris control provides a horizontal field of view ranging from 46° to 9°.
• Dual line-crossing logic requires vehicles to cross two virtual detection lines to trigger alarms, reducing false positives from pedestrians or roadside objects.
• Industrial-grade construction rated IP66, NEMA 4X, and IK10, supporting continuous unattended operation in temperatures from -40 °C to +60 °C.
