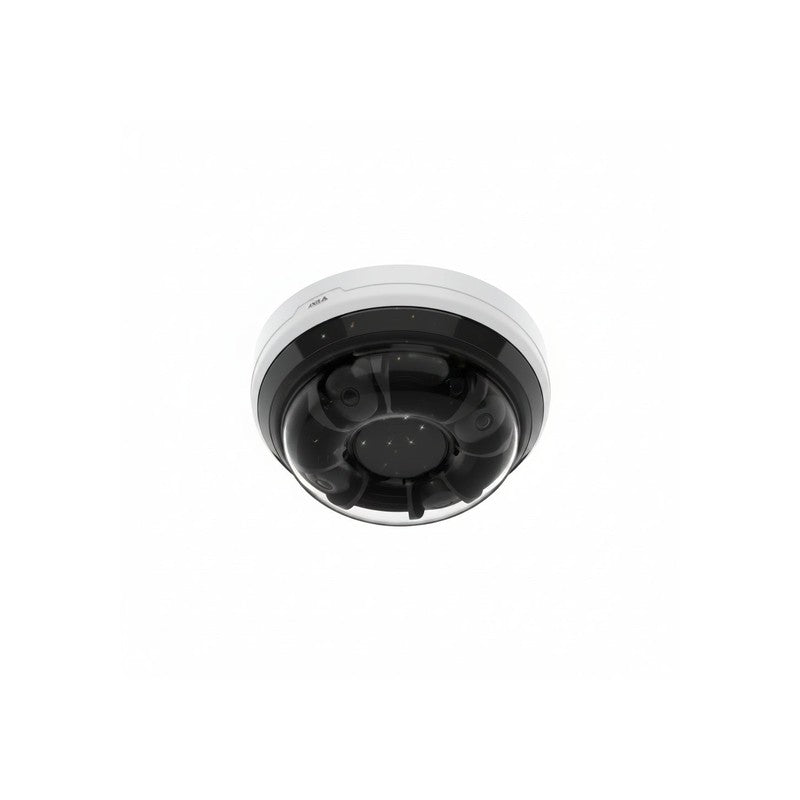

Axis P3748-plve 4-sensor 4K Panoramic Camera 360° Ir, Deep Learning, Outdoor-rated
SKU: P3748PLVE
$4,997.29
The Axis P3748-PLVE is a 4-sensor 4K panoramic camera engineered for wide-area outdoor monitoring from a single mounting point. This outdoor-rated unit delivers four independent 8MP channels with 360-degree IR illumination and onboard Deep Learning analytics for comprehensive perimeter security.
Key Features
- Four independent 8MP sensor channels capturing 3840×2160 (4K) resolution simultaneously
- Remote pan, tilt, roll, and zoom (PTRZ) control for each sensor head via management software
- Varifocal lenses ranging from approximately 3.18 mm to 7.42 mm per sensor head
- 360-degree built-in IR illumination with individually controlled LEDs for all-round night coverage
- Onboard Deep Learning Processing Unit supporting AXIS Object Analytics for people and vehicle detection
- Forensic WDR technology for handling scenes with extreme contrast
- IP66 and IK10 rated with an operating temperature range of -40°C to +50°C
Technical Specifications
| Model | AXIS P3748-PLVE |
| Number of Sensors | 4 independent sensor channels |
| Resolution per Channel | 8 MP (3840 x 2160) per sensor |
| Frame Rate | Approximately 12.5 or 15 fps per channel |
| Lens Type | Varifocal, approximately 3.18-7.42 mm per sensor head |
| Horizontal Field of View | 360-degree total coverage (appropriate mount required) |
| Vertical Field of View | Approximately 54-degree to 23-degree depending on zoom setting |
| Remote Adjustment | PTRZ (pan, tilt, roll, zoom) per sensor head via software |
| Day/Night | Day/night with removable IR cut filter |
| IR Illumination | Built-in 360-degree IR with individually controllable LEDs |
| Minimum Illumination (Colour) | Approximately 0.4 lux |
| Wide Dynamic Range | Forensic WDR |
| Analytics | AXIS Object Analytics (detect, classify, track, count people and vehicles); onboard Deep Learning Processing Unit |
| Video Compression | H.264, H.265 with Axis Zipstream; multiple streams per channel |
| Local Storage | Micro SD card slot |
| Weather Rating | IP66 |
| Vandal Rating | IK10 |
| Operating Temperature | -40 degrees C to +50 degrees C |
| Cybersecurity | Secure boot, signed OS, Edge Vault hardware security |
