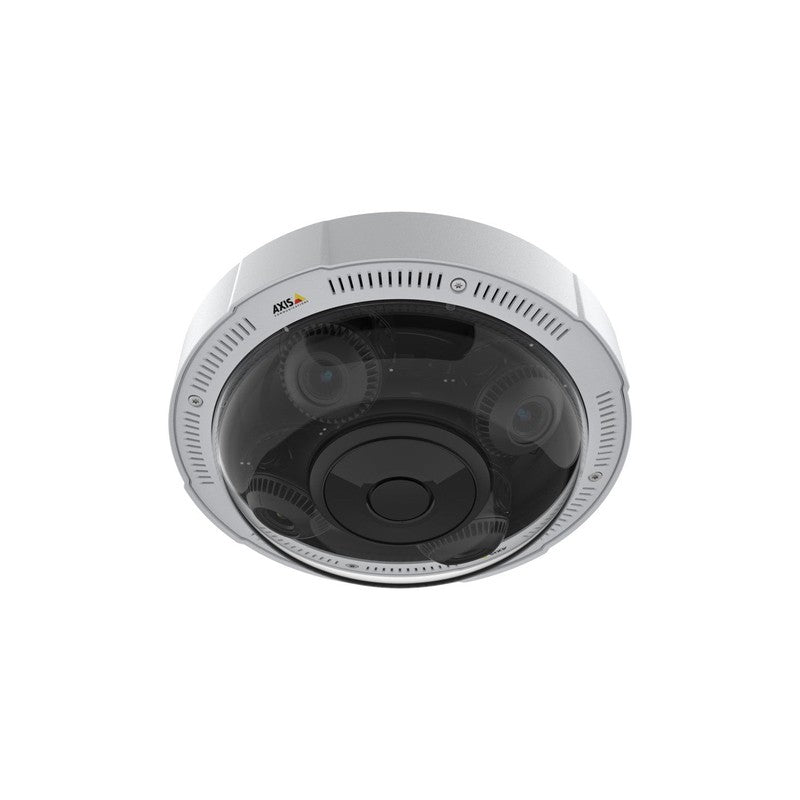

Axis P3735-ple Replaces P3727 4x 2MP Panoramic Camera, 360deg Ir, Ip67, Ik09
SKU: P3735PLE
$3,404.49
The Axis P3735-ple is a 4x 2MP panoramic camera designed to replace the AXIS P3727, providing comprehensive 360-degree coverage from a single mounting point. This outdoor-rated device integrates four independently adjustable varifocal heads with 360-degree infrared illumination, engineered for professional surveillance environments requiring high durability and efficient network usage.
Key Features
- Features four independent 2MP camera heads delivering up to 30 fps per channel from a single enclosure.
- Provides 360-degree multidirectional coverage using one network cable, one IP address, and a single VMS licence connection.
- Includes 360-degree IR illumination with individually controlled LEDs for detailed imagery in low light and complete darkness.
- Constructed to IP67, NEMA 4X, and IK09 standards for robust outdoor performance and resistance to physical impact.
- Utilizes a deep learning processing unit to run AXIS Object Analytics across multiple channels simultaneously.
- Equipped with Forensic WDR and Lightfinder technology to maintain image quality in challenging lighting conditions.
- Offers individually adjustable varifocal camera heads for precise aiming and focus during commissioning.
- Includes Axis Edge Vault hardware cybersecurity for enhanced network protection.
Technical Specifications
| Model | AXIS P3735-PLE |
| Part Number | 02633-001 |
| Product Type | Multidirectional Panoramic Network Camera |
| Sensor Configuration | 4 x 2MP camera channels |
| Maximum Resolution | 2MP per channel |
| Maximum Frame Rate | Up to 30 fps per channel |
| Coverage | 360° multidirectional coverage |
| Lens Type | Individually adjustable varifocal camera heads |
| IR Illumination | 360° IR with individually controlled LEDs |
| Day and Night | Yes, with removable IR cut filter |
| Wide Dynamic Range | Forensic WDR |
| Low Light | Lightfinder |
| Compression | H.264, H.265, Axis Zipstream |
| Analytics | AXIS Object Analytics and metadata streams across multiple channels |
| Deep Learning | Supported via onboard deep learning processing unit |
| Power | PoE+, IEEE 802.3at Type 2 Class 4 |
| Typical Power Consumption | 12.20W with IR illumination on |
| Maximum Power Consumption | 23.15W with IR illumination on |
| IP Rating | IP66, IP67 |
| Environmental Rating | NEMA 4X |
| Vandal Rating | IK09 |
| Casing | Aluminium and plastic with polycarbonate hard-coated dome |
| Mounting | Ceiling and recessed mounting options supported |
| Cybersecurity | Axis Edge Vault |
