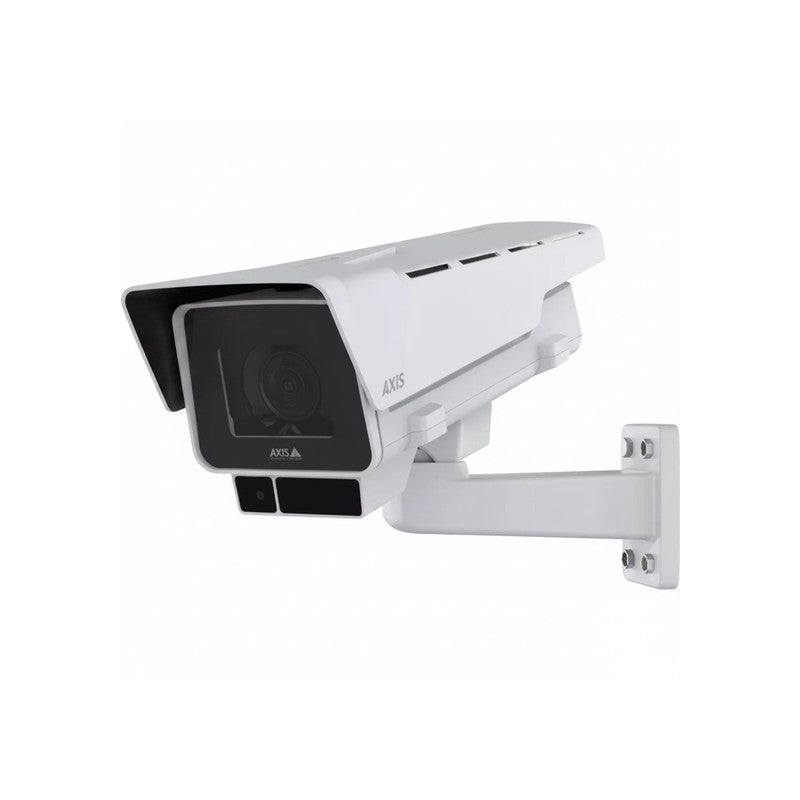

Axis P1388‑le 8 Mp Outdoor Box Camera With Motorised Varifocal 3.9-10mm Lens & Edge Deep Learning Analytics 02738-001
SKU: P1388LE
$2,779.71
The Axis P1388‑le 8 Mp Outdoor Box Camera With Motorised Varifocal 3.9-10mm Lens & Edge Deep Learning Analytics 02738-001 is an 8 MP outdoor box camera engineered for demanding perimeter installations in infrastructure and industrial environments. Featuring a motorised varifocal 3.9-10 mm lens and Edge Deep Learning analytics, the Axis device provides flexible coverage and robust performance in extreme lighting and weather conditions.
Key Features
- Motorised varifocal 3.9-10 mm CS-mount lens with f/1.5 aperture for remote zoom and focus adjustment
- 8 MP (4K) 1/1.8-inch progressive-scan RGB CMOS sensor delivering up to 60 fps for fast-moving targets
- Lightfinder 2.0 technology enabling colour imagery down to 0.13 lux and Optimized IR reaching approximately 50 m
- Forensic WDR with up to 120 dB dynamic range to handle high-contrast lighting scenarios
- ARTPEC-8 processor with integrated deep learning unit for on-camera AXIS Object Analytics
- IP66, IP67, IK10, and NEMA 4X ratings with integrated front heater and electronic image stabilisation
Technical Specifications
| Model | AXIS P1388-LE |
| Resolution | 8 MP (4K, 3840 x 2160) |
| Sensor | 1/1.8-inch progressive-scan RGB CMOS, 2.0 µm pixels |
| Max Frame Rate | Up to 60 fps at 4K resolution |
| Lens Type | Motorised varifocal CS-mount, 3.9-10 mm, f/1.5, P-Iris |
| Field of View (Horizontal) | Approximately 122 degrees (wide) to 46 degrees (tele) |
| Field of View (Vertical) | Approximately 64 degrees (wide) to 26 degrees (tele) |
| Low-Light Sensitivity (Colour) | Approximately 0.13 lux at 25/30 fps; 0.3 lux at 50/60 fps (Lightfinder 2.0) |
| IR Illumination Range | Approximately 50 m (Optimized IR) |
| Wide Dynamic Range | Forensic WDR, up to 120 dB |
| Processor | ARTPEC-8 with integrated deep learning processing unit |
| On-Edge Analytics | AXIS Object Analytics (human and vehicle detection, classification, tracking); compatible with AXIS Perimeter Defender and License Plate Verifier |
| Video Compression | H.264, H.265, MJPEG with Axis Zipstream |
| Video Streams | Up to 20 configurable streams; VBR, ABR, MBR, low-latency modes |
| Edge Storage | Encrypted microSD; NAS support |
| Power | PoE Class 4; 10-28 V DC |
| Environmental Rating | IP66, IP67, IK10, NEMA 4X |
| Operating Temperature | -40 to +60 degrees Celsius; humidity to 100% |
| Wind Resistance | Sustained winds up to 55 m/s (123 mph) |
| Cybersecurity | Axis Edge Vault, secure boot, signed firmware, CC-EAL6+ certified secure keystore |
| Protocols and Integration | ONVIF Profiles G/M/S/T, VAPIX API, ACAP |
| Additional Features | Electronic image stabilisation, integrated front heater, auto IR-cut filter, barrel distortion correction, defog, corridor mode, privacy masks, pixel counter, digital PTZ, customisable scene profiles |
