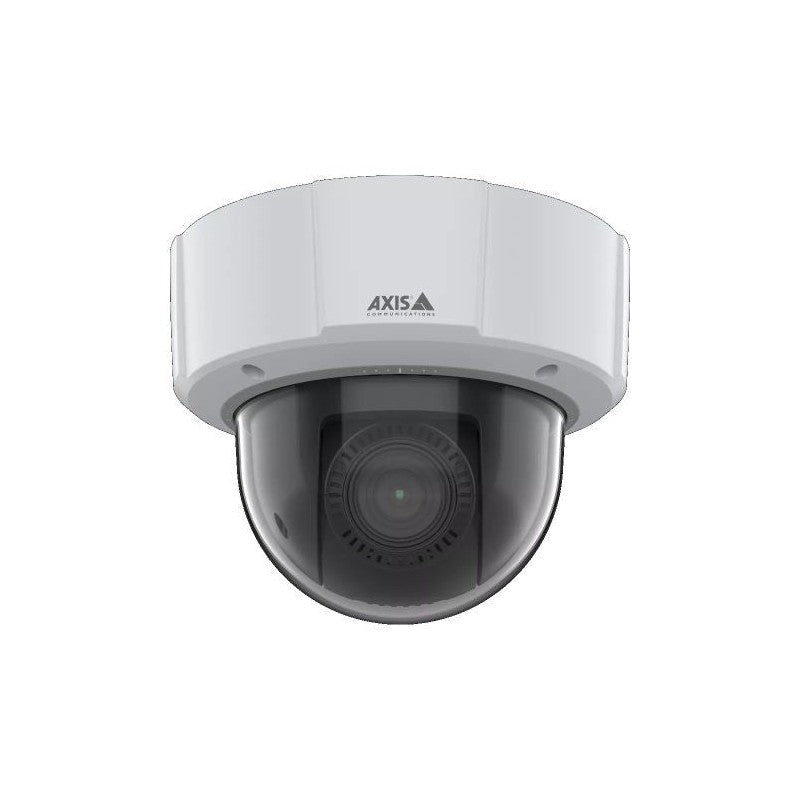

Axis M5526-e PTZ Camera 4 Mp With 10x Zoom And Focus Recall 02768-001
SKU: M5526E
$2,214.60
The Axis M5526-e PTZ Camera 4 Mp With 10x Zoom And Focus Recall 02768-001 is a compact dome camera designed for commercial environments requiring extensive coverage from a single mounting point. This Axis unit features a 4MP sensor and a 4.7-47mm varifocal lens, delivering 10x optical zoom with a horizontal field of view ranging from 59.1 degrees to 6.5 degrees.
Key Features
- 4MP image sensor capturing at 2688 x 1512 resolution
- 10x optical zoom with 4.7-47mm varifocal lens and focus recall functionality
- Continuous 360-degree endless pan and 0-90-degree tilt range
- ARTPEC-8 processor with built-in deep learning unit for on-camera AXIS Object Analytics
- Forensic WDR and Lightfinder 2.0 for mixed-light and low-light conditions
- IP66 and IK09 ratings for covered outdoor and vandal-exposed installations
- PoE Class 3 power delivery over a single Ethernet cable
Technical Specifications
| Model | AXIS M5526-E |
| Part Number | 02768-001 |
| Product Type | Indoor / Outdoor PTZ Network Camera |
| Maximum Video Resolution | 2688 x 1512 |
| Resolution Class | 4MP |
| Maximum Frame Rate | 50/60 fps |
| Image Sensor | 1/3″ CMOS |
| Lens | 4.7-47mm varifocal |
| Optical Zoom | 10x |
| Digital Zoom | 12x |
| Horizontal Field of View | 59.1 degrees (wide) to 6.5 degrees (telephoto) |
| Vertical Field of View | 35 degrees (wide) to 3.67 degrees (telephoto) |
| Pan Range | 360 degrees endless pan |
| Tilt Range | 0 to 90 degrees |
| Minimum Illumination | 0.25 lux colour / 0.01 lux black and white |
| Low-Light Technology | Lightfinder 2.0 |
| Wide Dynamic Range | Forensic WDR |
| Built-In IR | No |
| Compression | H.264, H.265, Axis Zipstream |
| Analytics | AXIS Object Analytics, AXIS Scene Metadata, AXIS Speed Monitor, AXIS Video Motion Detection |
| Deep Learning | Built-in deep learning processing unit (ARTPEC-8) |
| Audio Support | Yes (external audio input and output ports) |
| Built-In Microphone | No |
| Alarm I/O | 4 alarm inputs/outputs |
| Local Storage | Memory card slot supported |
| Power | Power over Ethernet, PoE Class 3 |
| IP Rating | IP66 |
| Vandal Rating | IK09 |
| Operating Temperature | -20 to 50 degrees Celsius |
| Cybersecurity | Signed OS, secure boot, Axis Edge Vault |
