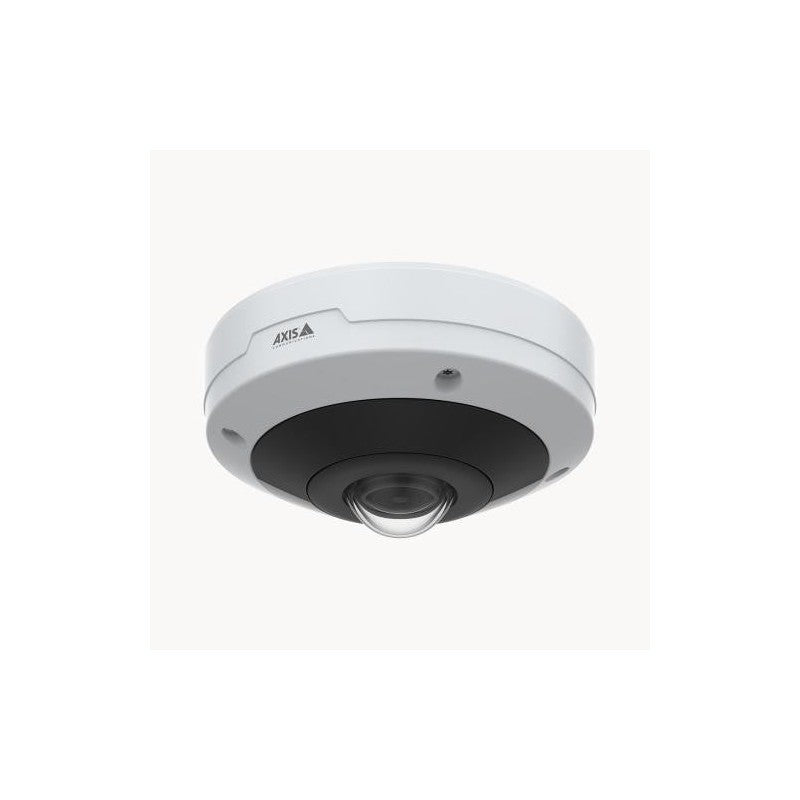

Axis M4317-plve Panoramic Camera 6 Mp Dome With 360° View And Deep Learning
SKU: M4317PLVE
$1,676.40
The Axis M4317-PLVE is a 6MP panoramic mini dome camera designed to consolidate multiple fixed units into a single installation point. It utilizes Sharpdome 360 technology and a 1.1mm fixed stereographic lens to provide comprehensive area monitoring with enhanced edge sharpness.
Key Features
- 6MP sensor with 2160 x 2160 maximum resolution and a 1.1mm fixed stereographic lens
- 182° horizontal and 182° vertical field of view supporting 180° or 360° panoramic modes
- On-edge deep learning processing unit for AXIS Object Analytics and Scene Metadata
- Lightfinder, Forensic WDR, and individually controllable OptimizedIR LEDs for low-light performance
- Digital PTZ, digital roll, and dewarped viewing modes including panorama, quad, corner, and corridor layouts
- IP66 weather protection and IK10 vandal resistance for indoor and outdoor commercial deployments
- H.264/H.265 compression with Axis Zipstream, PoE power, and local storage support
Technical Specifications
| Model | AXIS M4317-PLVE |
| Product Type | Panoramic Mini Dome Network Camera |
| Resolution | 6MP, 2160 x 2160 maximum |
| Image Sensor | 1/1.8″ CMOS |
| Lens | 1.1mm fixed stereographic lens |
| Field of View | 182° horizontal, 182° vertical |
| Panoramic Coverage | 360° ceiling mounted, 180° wall mounted |
| Maximum Frame Rate | 50/60 fps |
| Dewarped Views | Panorama, quad, corner, corridor |
| Digital PTZ | Yes |
| Digital Roll | Yes |
| Minimum Illumination | 0.16 lux colour / 0.03 lux black and white |
| Low-Light Technology | Lightfinder |
| Wide Dynamic Range | Forensic WDR |
| IR Illumination | Built-in IR with OptimizedIR, individually controllable LEDs |
| Compression | H.264, H.265, Axis Zipstream |
| Analytics | AXIS Object Analytics, AXIS Scene Metadata, AXIS Image Health Analytics, AXIS Video Motion Detection, AXIS Speed Monitor |
| Deep Learning | Built-in deep learning processing unit |
| Power | Power over Ethernet (PoE) |
| Local Storage | Memory card slot supported |
| IP Rating | IP66 |
| Vandal Rating | IK10 |
| Operating Temperature | -40 degrees C to 50 degrees C |
| Cybersecurity | Axis Edge Vault, signed OS, secure boot |
| Sustainability | BFR/CFR free, PVC free |
