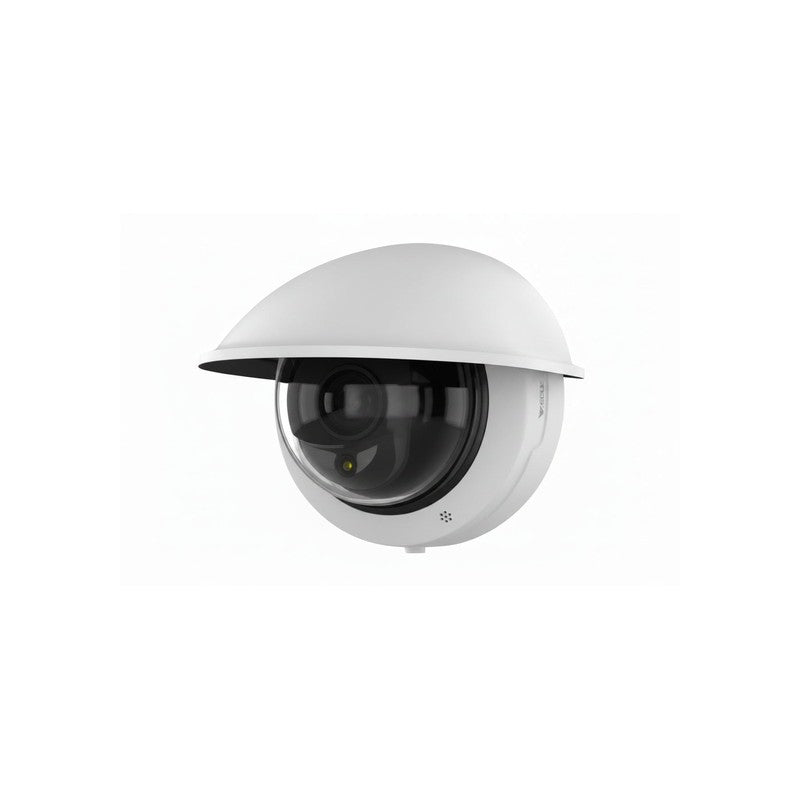

Axis M4228-lve Compact 8 Mp (4k) Outdoor AI Dome With Audio & Video Analytics 02816-001
SKU: M4228LVE
$1,926.78
The Axis M4228-lve Compact 8 Mp (4k) Outdoor AI Dome With Audio & Video Analytics 02816-001 is a compact 8 MP (4K) outdoor AI dome camera engineered for perimeter security and wide-scene coverage. This Axis unit features a remote varifocal lens and integrated audio and video analytics, providing actionable alerts and forensic-grade imaging without the need for server-side processing.
Key Features
- 8 MP (4K) 1/2.8″ CMOS sensor with 1.45 µm pixels for detailed forensic review and broad live view coverage
- 3.2-7.2 mm IR-corrected varifocal lens with remote zoom and focus, adjustable from 100° to 38° horizontal field of view
- IK10 and IP66/IP67-rated housing designed for wall and soffit mounting in outdoor environments
- Lightfinder 2.0 and Forensic WDR up to 120 dB for performance in low-light and high-contrast conditions
- Native AXIS Object and Audio Analytics on the ARTPEC-8 processor with a dedicated deep learning processing unit
- Hardware-enforced cybersecurity via Axis Edge Vault with a FIPS 140-3 Level 3 certified secure element
Technical Specifications
| Model | AXIS M4228-LVE |
| Resolution | 8 MP (4K) – 3840×2160 |
| Sensor | 1/2.8″ progressive-scan RGB CMOS, 1.45 µm pixels |
| Lens | 3.2-7.2 mm varifocal, IR-corrected, remote zoom and focus |
| Horizontal Field of View | 100° (wide) to 38° (telephoto) |
| Pan / Tilt / Rotation | Pan ±180°, Tilt -10° to +65°, Rotation ±180° |
| Minimum Illumination | 0.14 lux (colour), 0.03 lux (B/W), 0 lux (IR active) |
| WDR | Forensic WDR up to 120 dB |
| IR Illumination | Optimized IR |
| Low-Light Technology | Lightfinder 2.0 |
| Processor | ARTPEC-8 SoC with built-in DLPU |
| On-Device Analytics | AXIS Object Analytics (detection, classification, counting, tracking of people and vehicles), AXIS Audio Analytics, Image Health Analytics, Video Motion Detection, Scene Metadata, Live Privacy Shield |
| Audio | Built-in microphone |
| Compression | H.265 Main Profile, H.264 (Baseline/Main/High), MJPEG, Axis Zipstream |
| Video Streams | Up to 20 configurable streams; VBR, ABR, MBR, low-latency modes |
| Local Storage | MicroSD/SDHC/SDXC |
| Cybersecurity | Axis Edge Vault: secure boot, signed OS, FIPS 140-3 Level 3 certified secure element |
| Ingress Protection | IP66 / IP67 |
| Impact Rating | IK10 |
| Operating Temperature | -30°C to +50°C (-22°F to +122°F) |
| Additional Housing Features | Built-in weathershield, repaintable housing |
| Standards Compliance | ONVIF Profiles G, M, S, T; ACAP for third-party application support |
