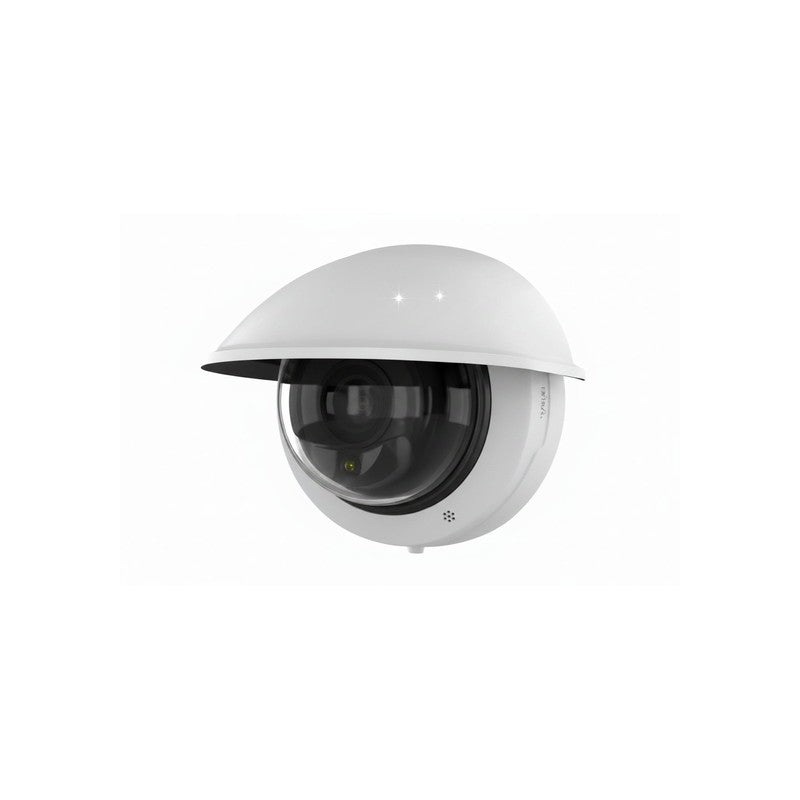

Axis M4227-lve Compact 5 Mp Outdoor AI Dome With Audio & Video Analytics 02815-001
SKU: M4227LVE
$1,698.63
The Axis M4227-LVE is a compact 5 MP outdoor dome camera engineered for demanding environments requiring simultaneous video and audio intelligence. Designed for building perimeters, parking facilities, and public venues, this unit integrates the ARTPEC-8 processor with an integrated deep learning unit to perform on-edge analytics for real-time classification of humans, vehicles, and sound events.
Key Features
- 5 MP resolution with a 3.2-7.2 mm remote varifocal lens, supporting a horizontal field of view from 98 degrees to 38 degrees for remote adjustment of zoom, focus, and framing.
- ARTPEC-8 processor with integrated deep learning unit (DLPU) enables AXIS Object Analytics for native detection, classification, tracking, and counting of humans and vehicles without server-side processing.
- AXIS Audio Analytics with a built-in microphone classifies sound events such as glass break, raised voices, and volume changes to extend detection capabilities in low-light or obscured scenes.
- Lightfinder 2.0 technology delivers colour imaging at approximately 0.13 lux, dropping to 0.03 lux, combined with Forensic WDR up to 120 dB and Optimized IR for usable detail in varying lighting conditions.
- IP66 and IK10 ratings with an operating temperature range of -30 degrees C to 50 degrees C ensure durability for year-round outdoor deployment.
Technical Specifications
| Model | AXIS M4227-LVE |
| Resolution | 5 MP (2592 x 1944) |
| Image Sensor | 1/2.7″ progressive-scan RGB CMOS |
| Lens | 3.2-7.2 mm varifocal (remote zoom and focus) |
| Horizontal Field of View | 98 degrees (wide) to 38 degrees (telephoto) |
| Pan / Tilt / Rotation | Pan ±180°, Tilt -10° to +65°, Rotation ±180° |
| Minimum Illumination | 0.13 lux (colour), 0.03 lux (B/W), 0 lux with IR |
| Wide Dynamic Range | Forensic WDR up to 120 dB |
| Low-Light Technology | Lightfinder 2.0, Optimized IR |
| Processor | ARTPEC-8 with integrated DLPU |
| Preinstalled Analytics | AXIS Object Analytics, AXIS Audio Analytics, AXIS Image Health Analytics, Scene Metadata, Live Privacy Shield, Video Motion Detection |
| Audio | Built-in microphone |
| Compression | H.264 (Baseline, Main, High), H.265 Main Profile, Motion JPEG with Axis Zipstream |
| Streaming | Up to 20 configurable streams, VBR/ABR/MBR, low-latency mode |
| Local Storage | Built-in microSD/SDHC/SDXC slot |
| Cybersecurity | Axis Edge Vault: secure boot, signed OS, FIPS 140-3 Level 3 keystore |
| Ingress Protection | IP66, IK10 |
| Operating Temperature | -30 degrees C to 50 degrees C (-22 degrees F to 122 degrees F) |
| VMS Compatibility | ONVIF Profiles G, M, S, T |
| Application Platform | ACAP (supports third-party analytics applications) |
