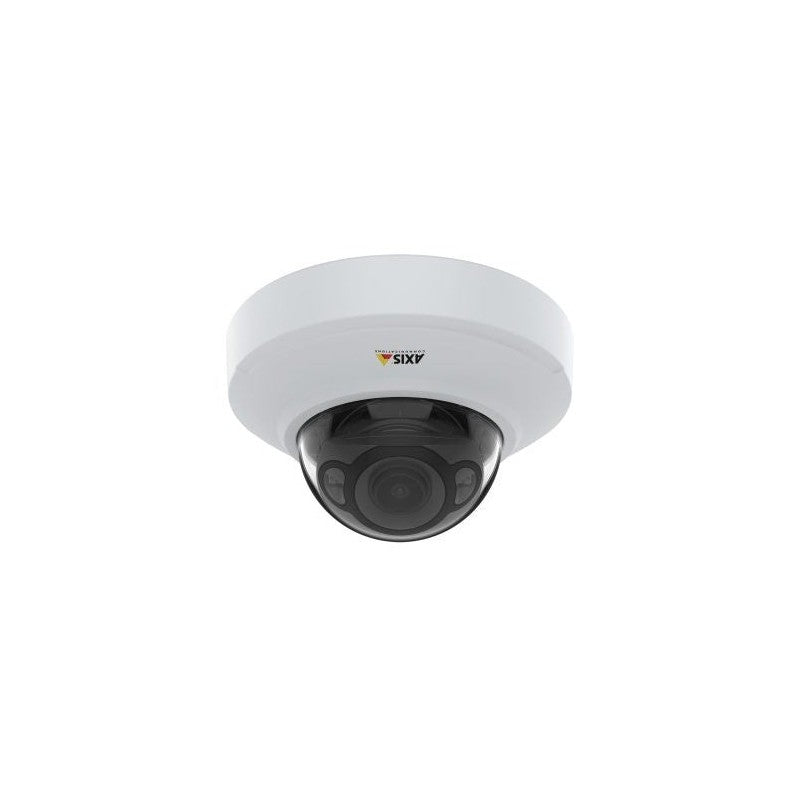

Axis M4216-lv 4MP Indoor Mini Dome Camera, H.265, Wdr, Ir, Poe, 3-6mm, Vf Lens 02113-001
SKU: M4216LV
$1,177.98
The Axis M4216-lv 4MP Indoor Mini Dome Camera is a compact surveillance solution engineered for ceiling-mounted deployment in retail, corporate, and lobby environments. This Axis unit integrates a motorised varifocal lens with on-device deep learning analytics to deliver flexible framing and intelligent video monitoring within a discreet, paintable housing.
Key Features
- 3-6mm motorised varifocal lens with remote zoom and autofocus, providing a horizontal field of view ranging from 100° to 45°
- 1/2.7-inch progressive-scan CMOS sensor capturing 2304 x 1728 resolution at 30 fps
- Lightfinder technology maintains colour imaging down to 0.18 lux, while OptimizedIR ensures visibility at 0 lux
- On-device AXIS Object Analytics via integrated DLPU for human and vehicle classification with structured metadata
- Axis Edge Vault with EAL6+ hardware keystore for enhanced cybersecurity in sensitive deployments
- Zipstream compression over H.265 or H.264 to optimise storage consumption in multi-camera systems
- Paintable IK08-rated housing with an optional smoked dome for aesthetic integration
Technical Specifications
| Model | Axis M4216-LV (Part No. 02113-001) |
| Resolution | 4MP – 2304 x 1728 at 30 fps |
| Image Sensor | 1/2.7-inch progressive-scan CMOS |
| Lens | 3-6mm varifocal, F1.9-F2.7, remote zoom and autofocus |
| Horizontal Field of View | Approximately 100 degrees (wide) to 45 degrees (tele) |
| Vertical Field of View | Approximately 72 degrees (wide) to 34 degrees (tele) |
| Minimum Illumination | Colour: approximately 0.18 lux (Lightfinder); B/W: approximately 0 lux (OptimizedIR) |
| IR Illumination | Built-in OptimizedIR |
| Wide Dynamic Range | Forensic WDR |
| Video Compression | H.265, H.264 with Zipstream |
| On-Device Analytics | AXIS Object Analytics via integrated DLPU (human and vehicle classification); ACAP v4 app support |
| Cybersecurity | Axis Edge Vault – EAL6+ hardware keystore, signed OS, secure boot |
| HDMI Output | Yes |
| Audio / I/O | Audio and I/O interface (external microphone or Portcast accessory required for audio input) |
| Storage | MicroSD card (onboard edge storage) and NAS |
| Vandal Rating | IK08 |
| Ingress Protection | IP42 |
| Power | PoE (IEEE 802.3af) |
| Operating Temperature | 0 to 45 degrees Celsius |
| Weight | Approximately 375g |
| Warranty | 5-year warranty; Axis OS support through December 31, 2031 |
