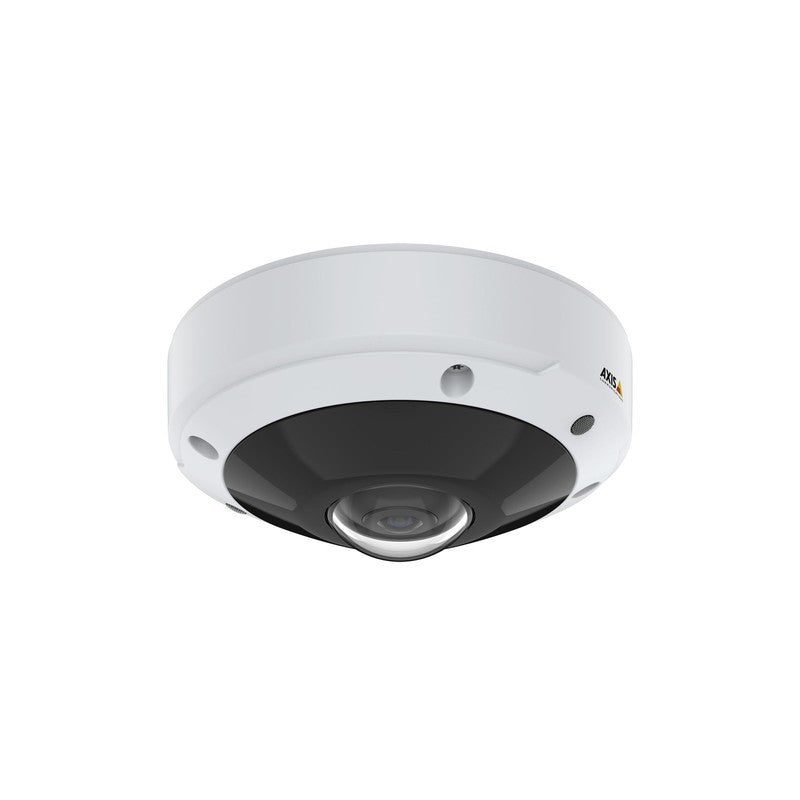

Axis M3077-plve 6MP Mini Dome Camera, H.264, Poe, 1.56mm, 180/360 Fxed Lens 02018-001
SKU: M3077PLVE
$1,739.58
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Axis T94k01d Pendant Kit For 1.5″ Nps Threaded Brackets With Indoor/outdoor Use, Flexible Mount Compatibility, Aesthetic Installation Design
$116.79
Upgrades Subtotal:
$0.00
The Axis M3077-PLVE is a compact 6MP mini dome panoramic camera designed for wide-area surveillance from a single ceiling or wall position. Utilizing a 1.56mm fixed lens and a 1/1.8″ CMOS sensor, it captures high-resolution 2016 x 2016 imagery that is software-dewarped into multiple viewing formats for precise monitoring.
Key Features
- Delivers 360° overhead coverage when ceiling-mounted or 180° forward-facing coverage when wall-mounted using a fixed 1.56mm lens.
- Features a 6MP 1/1.8″ CMOS sensor with a maximum resolution of 2016 x 2016 pixels.
- Includes software dewarping to convert fisheye images into panorama, quad, corner, and corridor formats, along with digital PTZ for navigation and zoom.
- Equipped with Axis Lightfinder for low-light colour retention, Forensic WDR for high-contrast scenes, and OptimizedIR illumination up to 20m.
- Supports audio surveillance and detection event triggers via two integrated microphones.
- Constructed to IP66 and IK10 ratings with an operating temperature range of -40 °C to 50 °C.
- Connects via PoE (Power over Ethernet) for simplified installation in indoor ceilings, building entries, and covered external structures.
Technical Specifications
| Model | AXIS M3077-PLVE |
| Part Number | 02018-001 |
| Product Type | Mini Dome Panoramic Network Camera |
| Resolution | 6MP, maximum 2016 x 2016 |
| Image Sensor | 1/1.8″ CMOS |
| Lens | 1.56mm fixed panoramic lens |
| Field of View | 183° horizontal, 183° vertical |
| Panoramic Views | 360° ceiling-mounted overview, 180° wall-mounted overview |
| Dewarped View Modes | Panorama, quad, corner, corridor |
| Digital PTZ | Yes |
| Maximum Frame Rate | 50/60 fps |
| Minimum Illumination | 0.16 lux colour, 0 lux with IR |
| Low-Light Technology | Axis Lightfinder |
| Wide Dynamic Range | Forensic WDR |
| IR Illumination | Built-in OptimizedIR up to 20m |
| Compression | H.264, H.265, Axis Zipstream |
| Audio | 2 built-in microphones, audio detection |
| Analytics | AXIS Fence Guard, AXIS Loitering Guard, AXIS Motion Guard, AXIS Video Motion Detection |
| Local Storage | Memory card slot supported |
| Power | Power over Ethernet (PoE) |
| IP Rating | IP66 |
| Vandal Rating | IK10 |
| Operating Temperature | -40 °C to 50 °C |
| Cybersecurity | Axis Edge Vault, signed OS, secure boot |
| Sustainability | PVC free |
