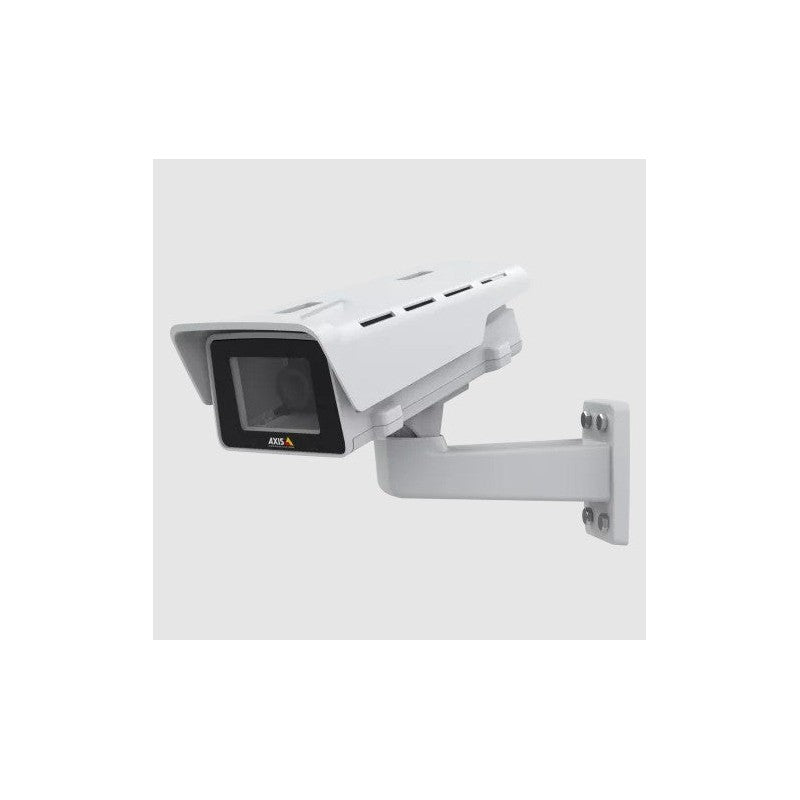

Axis M1135-e Mk Ii 2MP Outdoor Network Box Camera 02485-001
SKU: M1135E
$1,261.05
The Axis M1135-e Mk II 2MP Outdoor Network Box Camera 02485-001 is a CS-mount box camera engineered for demanding outdoor environments, featuring IP66, IK10, and NEMA 4X protection ratings. Designed for critical infrastructure and industrial sites, this Axis camera delivers full HD 1080p video at 30 fps with integrated Lightfinder technology for reliable low-light imaging.
Key Features
- CS-mount lens support with i-CS compatibility for remote zoom and focus adjustment
- 2MP resolution recording full HD 1080p video at 30 fps
- Axis Lightfinder technology enables colour imaging down to 0.1 lux and monochrome down to 0.02 lux
- Forensic WDR for high-contrast scene management
- IP66, IK10, and NEMA 4X ratings for corrosion, dust, and impact resistance
- Redundant PoE and DC power inputs for continuous operation during partial power interruptions
- AXIS Object Analytics for out-of-the-box people and vehicle detection, counting, and tracking
Technical Specifications
| Resolution | 2MP (1920×1080) Full HD |
| Frame Rate | 30 fps |
| Minimum Illumination (Colour) | 0.1 to 0.17 lux |
| Minimum Illumination (Monochrome) | 0.02 to 0.03 lux |
| Low-Light Technology | Axis Lightfinder |
| Wide Dynamic Range | Forensic WDR |
| Lens Type | CS-mount varifocal (3-10.5mm or 3.5-10mm depending on variant); i-CS lens compatible |
| Horizontal Field of View | Approximately 90° to 33° |
| Video Compression | H.265, H.264 (Baseline/Main/High), Motion JPEG |
| Zipstream | Yes – H.264 and H.265 |
| Video Streams | Up to 20 simultaneous streams |
| Power | PoE Class 3; Redundant 8-28V DC |
| Weatherproofing | IP66, IK10, NEMA 4X |
| Operating Temperature | -20°C to 50°C |
| Edge Storage | MicroSD/SDHC/SDXC card slot |
| Analytics | AXIS Object Analytics (people and vehicle detection, classification, tracking, counting); video motion detection; tampering alarm |
| Audio | Audio input |
| Cybersecurity | Axis Edge Vault; secure boot; signed firmware; FIPS 140-3 Level 3 certified secure keystore |
| Housing | Outdoor box camera; repaintable housing |
| VMS Compatibility | Axis Camera Station; third-party VMS via ONVIF |
