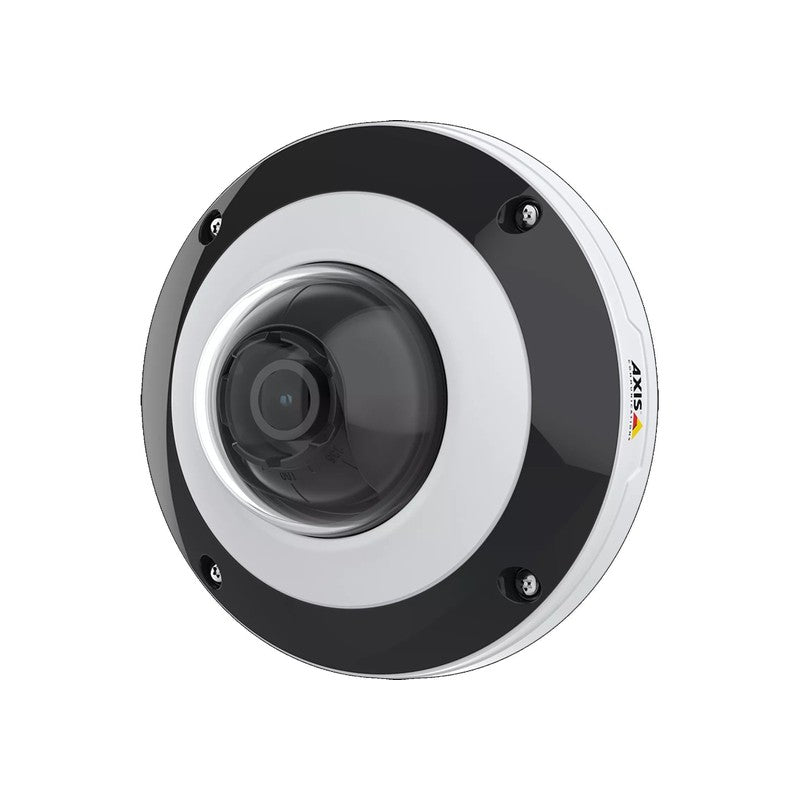

Axis F4105-lre 1080p Mini Dome Sensor With Ir, Forensic Wdr & 2.8mm M12 Lens
SKU: F4105LRE
$679.09
The Axis F4105-lre 1080p Mini Dome Sensor With Ir, Forensic Wdr & 2.8mm M12 Lens is a modular sensor head engineered for integration with compatible AXIS F91 main units. This design facilitates flexible surveillance deployments by allowing the dome to be positioned up to 30 meters from the processing hardware via SMA cabling.
Key Features
- Modular F Series design functions as a remote sensor for AXIS F91 main units, supporting a 30-meter separation distance via pigtail SMA cable.
- Captures HDTV 1080p video at up to 50/60fps, with support for up to 180fps at 720p when paired with the AXIS F9111 main unit.
- Features a 2.8mm F1.6 M12 lens providing a 110-degree horizontal field of view for wide-angle coverage in confined spaces.
- Includes built-in IR illumination and a 0.3 lux colour minimum illumination rating for effective low-light monitoring.
- Supports Forensic WDR and barrel distortion correction when connected to a compatible AXIS F91 main unit to retain detail in high-contrast scenes.
- Rated IP66, IP67, IP6K9K, and IK10, with testing for shock and vibration resistance suitable for demanding environments such as transport and washdown areas.
Technical Specifications
| Product Type | Mini dome sensor for Axis F Series modular camera systems. |
| Model | AXIS F4105-LRE Dome Sensor. |
| Brand | Axis Communications. |
| Compatible Main Units | Compatible AXIS F91 main units, including 1-channel and 4-channel models. |
| Maximum Sensor Cable Run | Up to 30m from the compatible main unit. |
| Image Sensor | CMOS. |
| Maximum Video Resolution | 1920 x 1080 (HDTV 1080p). |
| Maximum Frame Rate | Up to 50/60fps at 1080p (main unit dependent); up to 180fps at 720p with AXIS F9111. |
| Lens | 2.8mm fixed M12 lens, F1.6 aperture. |
| Horizontal Field of View | 110 degrees. |
| Vertical Field of View | 61 degrees. |
| Lens Mount | M12, exchangeable. |
| Minimum Illumination | 0.3 lux (colour). |
| Built-In IR | Yes. |
| Day and Night | Yes. |
| Wide Dynamic Range | Forensic WDR, supported with compatible AXIS F91 main unit. |
| Barrel Distortion Correction | Supported. |
| IP Rating | IP66, IP67, IP6K9K. |
| Vandal Rating | IK10. |
| Operating Temperature | -30°C to 55°C. |
| Cable Connection | Pigtail with SMA connector. |
| Casing Material | Plastic. |
| Ordering Part Number | 02364-001. |
| Bulk Pack Part Number | 02364-021 (8-piece bulk pack). |
| Warranty | 5 years. |
