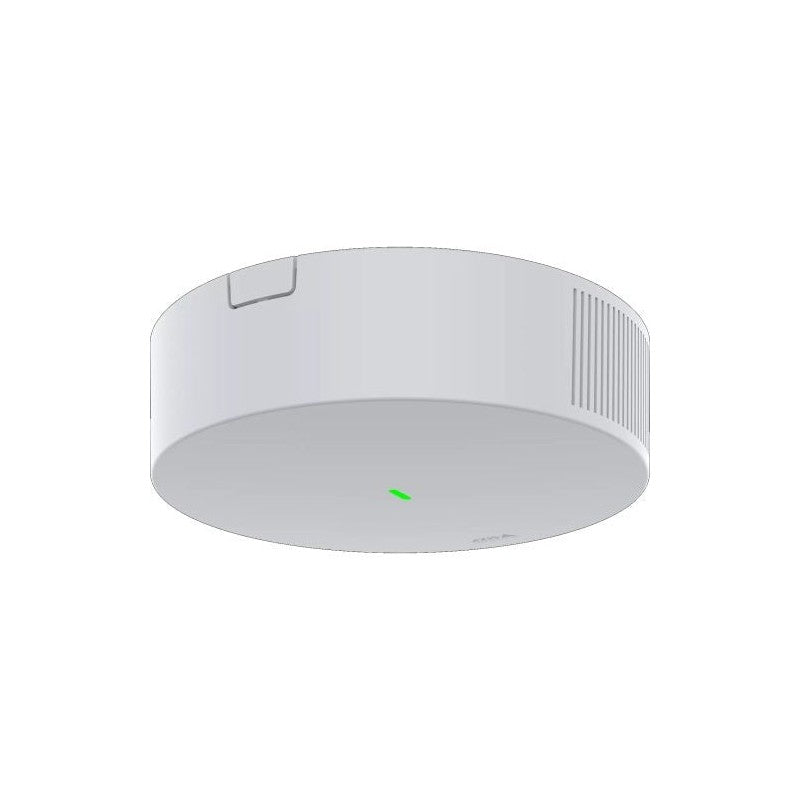

Axis D6210 Air Quality Sensor For Indoor Iaq, Vape & Smoke Detection
SKU: D6210
$907.71
The Axis D6210 Air Quality Sensor For Indoor Iaq, Vape & Smoke Detection is an indoor environmental sensor that extends compatible Axis installations without requiring additional network infrastructure. It provides comprehensive monitoring of particulate matter, volatile organic compounds, and other environmental factors while detecting vaping and smoking to support policy enforcement in commercial and public settings.
Key Features
- Measures particulate matter, VOC, NOx, CO2, relative humidity, humidex, temperature, and heat index
- Detects vaping and smoking indoors to enforce smoke-free and vape-free policies
- Utilizes Axis Portcast technology to share the host device's IP address, eliminating the need for a separate switch port or power supply
- Allows flexible installation up to 100m from the Axis IP device or power source
- Triggers automatic actions when defined air quality thresholds are breached
- Supports system responses including alerts, strobe sirens, speaker warnings, video recording, and data overlays
- Designed for use in schools, offices, healthcare facilities, hospitality venues, and public spaces
Technical Specifications
| Model | AXIS D6210 Air Quality Sensor |
| Part Number | 03069-001 |
| Product Type | Indoor air quality sensor / environmental sensor |
| Detected Events | Vaping and smoking detection |
| Air Quality Parameters Measured | Particulate matter, volatile organic compounds, nitrogen oxides, carbon dioxide |
| Environmental Parameters Measured | Relative humidity, humidex, temperature, heat index |
| Event Triggering | Automatic actions triggered when defined air quality thresholds are breached |
| Connection Technology | Axis Portcast technology |
| Standalone Operation | Not a standalone network device; requires a compatible Axis host device |
| Installation Position | Installed between compatible Axis host device and power source |
| IP Address Requirement | Shares the IP address of the connected compatible Axis host device; no additional IP address required |
| Switch Port Requirement | No additional switch port required when connected through a compatible host device |
| Power Requirement | No additional power source required when installed using Portcast with a compatible host device |
| Maximum Installation Distance | Up to 100m / 330ft from compatible Axis IP device or power source |
| Video Overlay Support | Air quality parameters can be displayed as overlays on the connected device’s video stream |
| Privacy Masking | Masking supported to protect privacy where required |
| Compatible Device Categories | Selected Axis cameras, strobe sirens, and compatible Axis IP devices |
| Casing | White polycarbonate |
| Warranty | 5-year warranty |
