Axis C1410 Mk Ii | Network Mini Speaker – Poe, Built-in Pir, Wide-area Audio
SKU: C1410
$804.75
Optional Upgrades & Add-Ons
⚠️ Add-on items may ship separately from different suppliers and could arrive on different days. Additional freight charges may apply.
Axis Tc1601 Universal Mount | 02222-001
$116.93
$111.08
Upgrades Subtotal:
$0.00

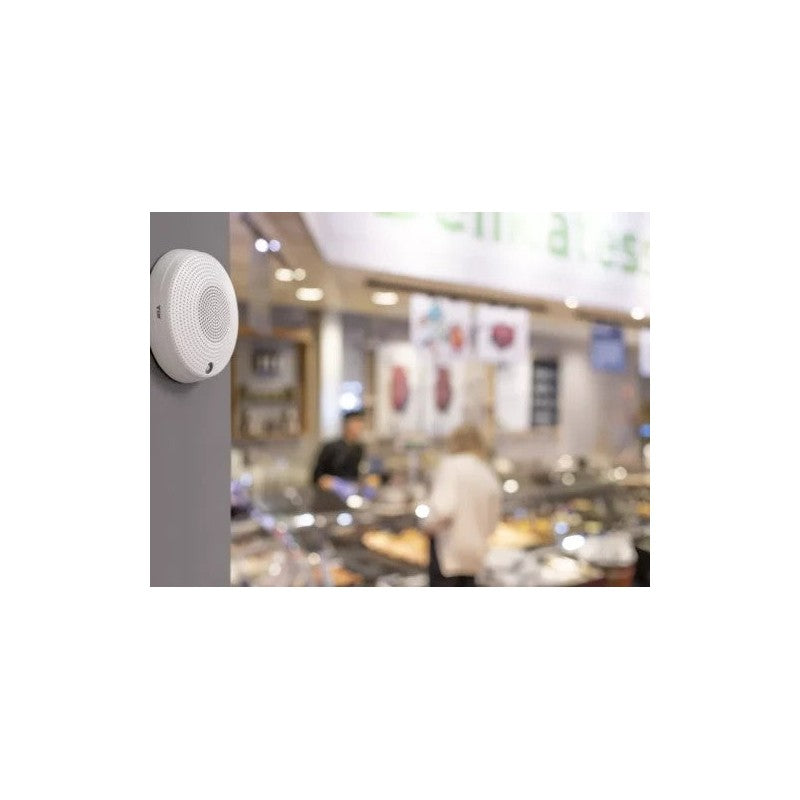

The Axis C1410 Mk II Network Mini Speaker is a self-contained audio solution designed for ceiling and wall mounting in indoor commercial environments. This unit integrates a 7 W Class-D amplifier, a built-in PIR sensor, and two-way audio capabilities into a single device powered exclusively over a standard PoE connection.
Key Features
- 2.5-inch broadband dynamic cone speaker driven by a 7 W Class-D amplifier, producing up to 90 dB SPL
- 145-degree conical coverage pattern optimized for corridors, waiting rooms, and retail aisles
- Built-in PIR sensor with a detection range of up to 6 m for motion-triggered audio responses
- Integrated microphone supports real-time two-way voice communication and remote health testing
- Powered via IEEE 802.3af/at PoE over a single Cat5e cable, eliminating the need for separate power or audio cabling
- Pre-installed AXIS Audio Manager Edge for zone scheduling and message management
- Supports SIP, VoIP, and VAPIX integration for connection to video management and access control systems
Technical Specifications
| Speaker Driver | 2.5-inch broadband dynamic cone |
| Amplifier | 7 W Class-D |
| Frequency Response | 100 Hz to 20 kHz |
| Maximum SPL | Up to 90 dB |
| Coverage Angle | Approx. 145-degree conical |
| Built-In Microphone | Yes – for two-way audio and remote health monitoring |
| PIR Motion Sensor | Built-in, detection range up to 6 m |
| Network Interface | RJ-45 10/100BASE-TX PoE (IEEE 802.3af/at Type 1 Class 3) |
| Power Supply | Power over Ethernet (IEEE 802.3af/at) |
| Protocol Support | SIP, VoIP, VAPIX |
| Audio Management Software | AXIS Audio Manager Edge (pre-installed) – zone management, scheduling, live and pre-recorded messages |
| Built-In DSP | Yes – pre-configured digital signal processing, no external DSP required |
| Environmental Rating | IP4X – indoor use only |
| Operating Temperature | -20 degrees C to +50 degrees C |
| Dimensions | Ø182 mm x 52 mm |
| Weight | Approx. 600 g |
| Part Number | 02838-001 |
| Warranty | 5-year manufacturer warranty |
