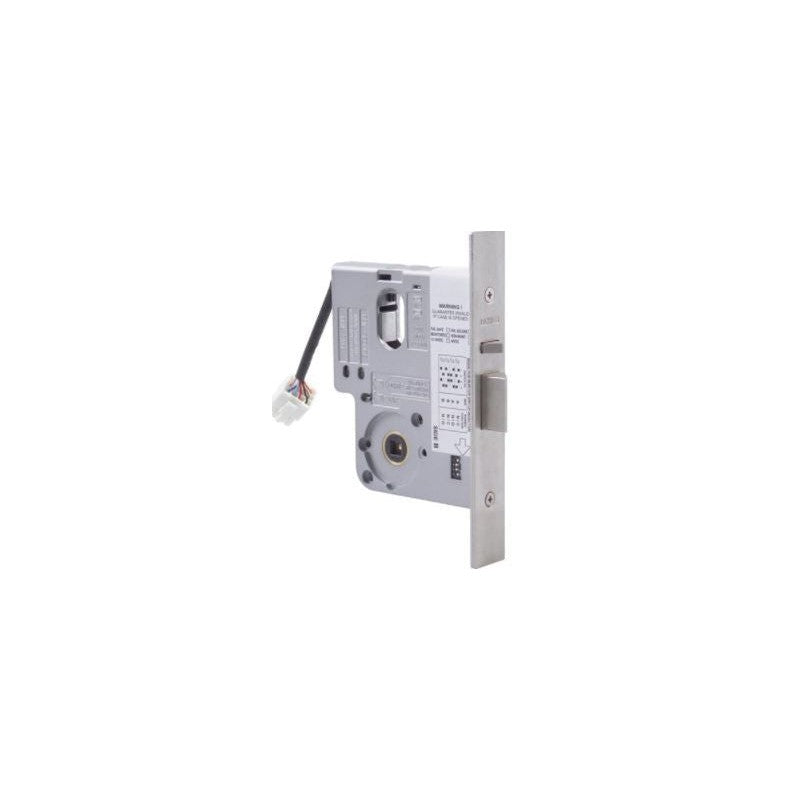

Assa Abloy Lockwood 3570 Series Standard Electric Mortice Lock Monitored Fail Safe/fail Secure(field Changeable) 12/24vdc
SKU: ASA5570ELM0SC
$2,125.64
The ASSA ABLOY Lockwood 3570 Series Standard Electric Mortice Lock is a monitored security device engineered for high-security commercial and residential applications. This unit features a 127mm backset and a silver finish, supporting both 12VDC and 24VDC power supplies with a field-changeable fail-safe or fail-secure operating mode.
Key Features
- Monitored lock status and door status sensors with LED indicator for real-time system feedback
- Field-changeable fail-safe or fail-secure operation to suit specific security requirements
- 127mm backset dimension with a standard silver finish
- Compatible with 12VDC and 24VDC power supplies
- Includes key override functionality for manual access
- Recessed mount design for integrated door installation
- 4-hour fire rating for enhanced structural safety compliance
Technical Specifications
Technical Specifications
| Brand | ASSA ABLOY |
| Series | LOCKWOOD 3570 SERIES |
| Electric/Mechanical | ELECTRIC |
| Device Type | MORTICE LOCK |
| Monitored | MONITORED |
| Fail Safe/Fail Secure | FAIL SAFE (PTL) , FAIL SECURE(PTO) |
| Mounting | RECESSED MOUNT |
| Fire Rating | 4 HOUR FIRE RATING |
| Power | MULTI VOLTAGE , 12VDC , 24VDC |
| Warranty | 60 Months |
