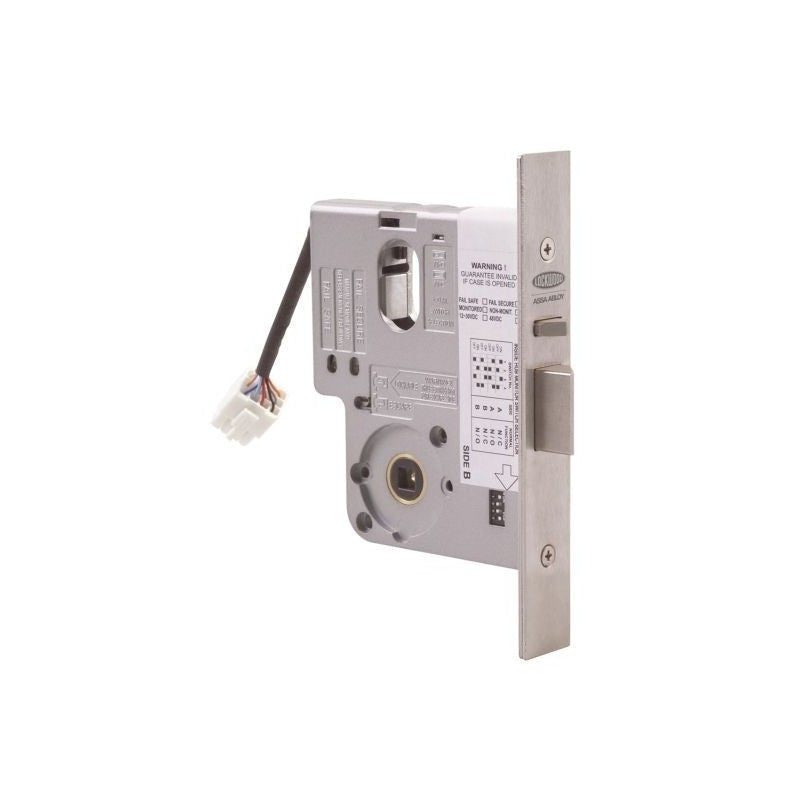

Assa Abloy Lockwood 3570 Series Standard Electric Mortice Lock Monitored Fail Safe/fail Secure(field Changeable) 12/24vdc
SKU: ASA3570ELM0SC
$1,544.52
The ASSA ABLOY Lockwood 3570 Series Standard Electric Mortice Lock is a 60mm backset security solution designed for monitored access control environments. This silver-finished unit features a field-changeable fail-safe or fail-secure operating mode and supports both 12V and 24V DC power supplies.
Key Features
- 60mm backset with standard mortice dimensions
- Field-changeable fail-safe or fail-secure operation
- Integrated door status sensor with LED indicator
- Key override mechanism for manual access
- 4-hour fire rating for enhanced safety compliance
- Compatible with 12V and 24V DC power systems
- Recessed mount installation design
Technical Specifications
Technical Specifications
| Brand | ASSA ABLOY |
| Series | LOCKWOOD 3570 SERIES |
| Electric/Mechanical | ELECTRIC |
| Device Type | MORTICE LOCK |
| Monitored | MONITORED |
| Fail Safe/Fail Secure | FAIL SAFE (PTL) , FAIL SECURE(PTO) |
| Mounting | RECESSED MOUNT |
| Fire Rating | 4 HOUR FIRE RATING |
| Power | MULTI VOLTAGE , 12VDC , 24VDC |
| Warranty | 60 Months |
