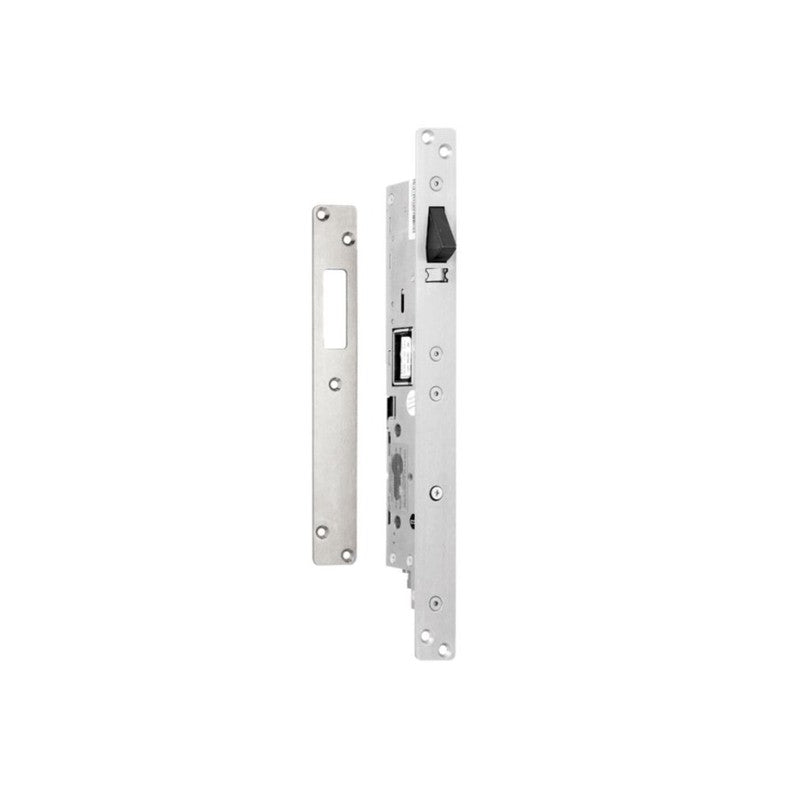

Lockwood Assa Abloy Es8200 Series Electric Mortice Lock 30mm Backset Silver Non Monitored Key Override 70kg Pre-load 2500kg Holding Force Fail Secure(pto) 4 Hour Fire Rating 24vdc
SKU: ASAES8204
$9,235.94
The Lockwood Assa Abloy ES8200 Series Electric Mortice Lock is a 24VDC fail-secure mechanism engineered for high-security applications requiring robust holding force and fire resistance. Designed with a 30mm backset and silver finish, this non-monitored unit supports a 70kg pre-load and delivers a 2500kg holding force.
Key Features
- 24VDC power supply with fail-secure (PTO) operation
- 2500kg holding force with 70kg pre-load capacity
- 4-hour fire rating for enhanced safety compliance
- 30mm backset with silver finish
- Non-monitored design with key override functionality
- Dimensions: 265H x 25W x 32D (mm)
Technical Specifications
Technical Specifications
| Brand | ASSA ABLOY |
| Warranty | 12 Months |
| Series | ES200 SERIES |
| Elec/Mech | ELECTRIC |
| Device Type | MORTICE LOCK |
| Backset/Lip | 30MM BACKSET |
| Colour | SILVER |
| Monitored | NON MONITORED |
| Key Override | KEY OVERRIDE |
| Pre-Load | 70KG |
| Holding Force | 2500KG HOLDING FORCE |
| Pto/Ptl | FAIL SECURE(PTO) |
| Fire Rating | 4 HOUR FIRE RATING |
| Power | 24VDC |
