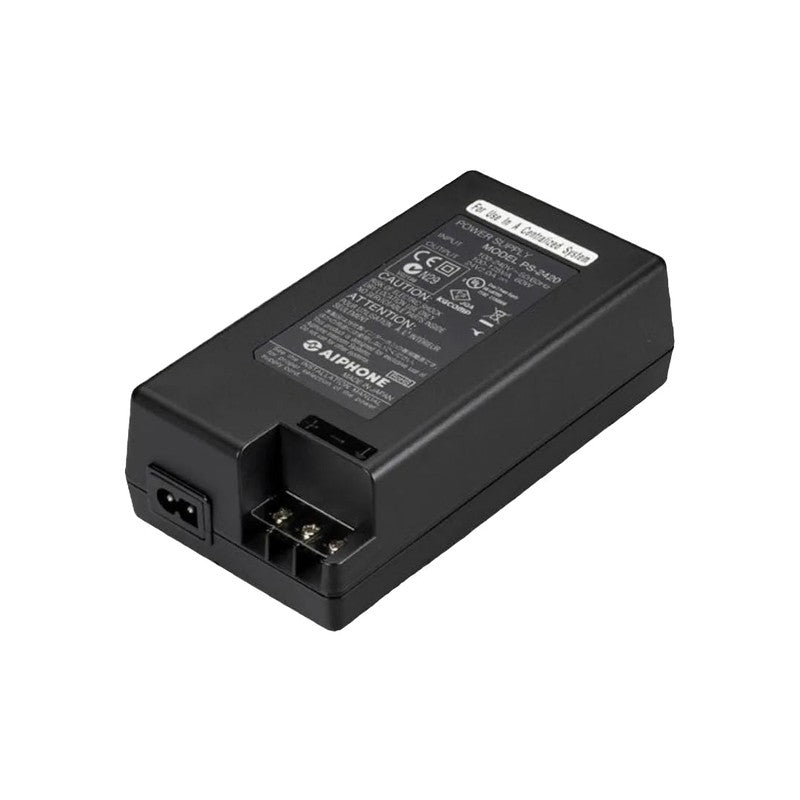

24vdc Power Supply 2a 1.2a 1x Output Term Strip Output Desktop/ Wall Mounted Single Phase Black
SKU: APHPS2420
$170.61
The 24vdc Power Supply 2a 1.2a 1x Output Term Strip Output Desktop/ Wall Mounted Single Phase Black provides a stable 24 VDC output for single-phase security and access control systems. This unit supports a wide input range of 100–240 VDC and is designed for flexible installation on either a desktop or wall surface.
Key Features
- Output voltage: 24 VDC
- Input voltage range: 100–240 VDC
- Maximum output current: 2 A (1.2 A available for secondary output)
- Single output terminal strip configuration
- Desktop or wall-mounted installation options
- Single-phase design with black finish
- Dimensions: 90.5 mm H × 166.7 mm W × 50.8 mm D
Technical Specifications
Technical Specifications
| Brand | AIPHONE |
| Warranty | 5 years |
| Output Voltage Range | 24VDC |
| Input Voltage Range | 100VDC , 240VDC , MULTI VOLTAGE |
| Type Of Device | POWER SUPPLY |
| Output Amps | 2A |
| Input Amps | 1.2A |
| Output Number | 1 |
| Output Type | TERM STRIP OUTPUT |
| Mounting | DESKTOP/ WALL |
| Phases | SINGLE PHASE |
| Color | BLACK |
