Hikvision 24v AC 1000ma Blk2 Con 11-55-21 Psu (48c)
SKU: CSDT2410A21
$55.95

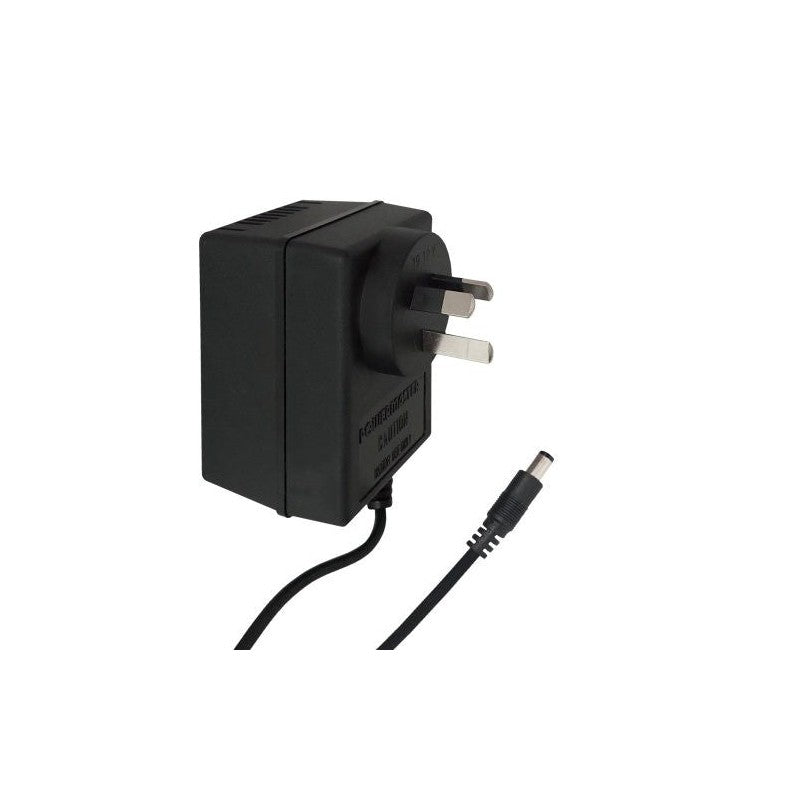

The Hikvision 24v AC 1000ma Blk2 Con 11-55-21 Psu (48c) is a compact 24V AC power supply unit designed for security camera installations. This Hikvision unit provides a stable 24-watt output, ensuring reliable power delivery for compatible analogue and HDTVI devices within constrained cabinet spaces.
Key Features
- 24V AC output at 1000mA with a maximum capacity of 24 watts
- Insulated active and neutral pins compliant with AS/NZS3112 safety standards
- Ventilated case design facilitates heat dissipation during continuous operation
- Compact dimensions of 58mm (W) x 77mm (H) x 57mm (D) for tight enclosures
- Compatible with 24V AC-powered HDTVI and analogue security cameras
- Model designation 11-55-21 with 48C configuration
Technical Specifications
| Product Name | 24V AC 1000mA BLK2 CON 11-55-21 PSU (48C) |
| SKU | CSD-T2410A21 |
| Output Voltage | 24V AC |
| Output Current | 1000mA (1A) |
| Maximum Power Capacity | 24 watts |
| Pin Compliance | AS/NZS3112 insulated active and neutral pins |
| Case Type | Large ventilated case |
| Designed For | Security applications |
| Dimensions (W x H x D) | 58mm x 77mm x 57mm |
| Colour | Black |
| Compatible Categories | Hikvision HDTVI Cameras, TVI Over Coaxial (TVI4.0) |
