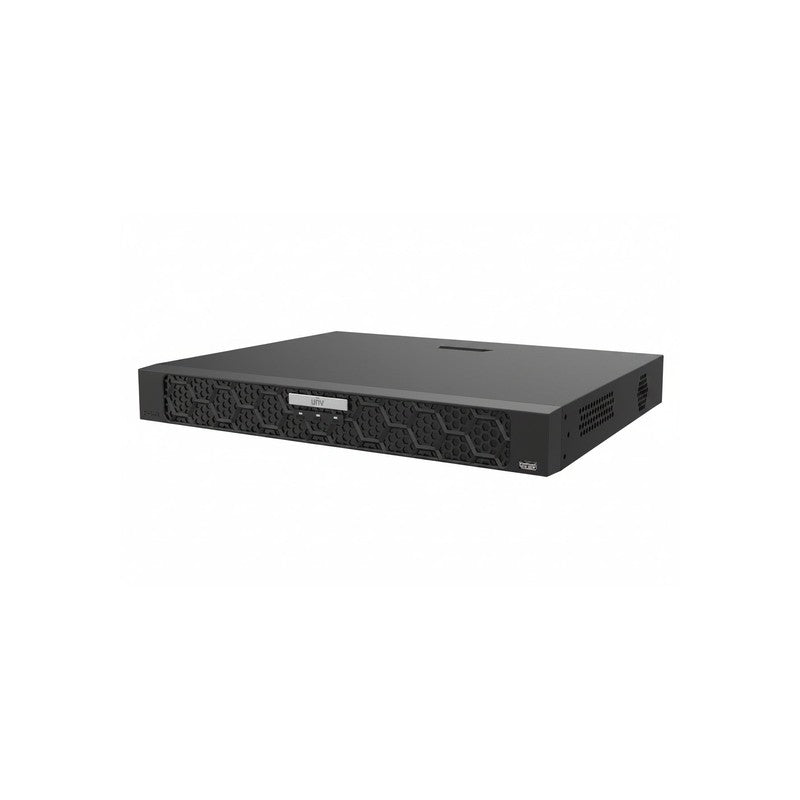

Uniview 16ch AI NVR Upto 32mp 192mbps Input 2xsata HDD Port Up To 16tb Each 12vdc
SKU: NVR50216EIMG
$1,382.00
The Uniview 16ch AI NVR Upto 32mp 192mbps Input 2xsata HDD Port Up To 16tb Each 12vdc is a 16-channel network video recorder engineered for high-resolution surveillance systems. It supports up to 32MP input bandwidth and features dual SATA hard drive bays, each accommodating drives up to 16TB for robust data storage.
Key Features
- 16-channel AI NVR with up to 32MP input resolution
- Supports H.264, H.265, and H.265+ compression standards
- 192Mbps total input bandwidth
- 2x SATA HDD ports supporting up to 16TB per drive with RAID 1 capability
- 1x HDMI and 1x VGA video outputs for local monitoring
- 1x audio input, 1x audio output, 4x alarm inputs, and 1x alarm output
- 2x NIC network interfaces for flexible network configuration
- Power supply: 12VDC
Technical Specifications
Technical Specifications
| Brand | UNIVIEW |
| Warranty | 36 Months |
| Channels | 16CH |
| Colour | BLACK |
| Ai | AI |
| Nvr/Xvr | NVR |
| Resolution | UPTO 32MP |
| Compression | H.264/5/5+ |
| Network Port | 2xNIC |
| Bandwidth | 192Mbps |
| Decoding | 16CH@1080P |
| Material | METAL |
| Hdd Port | 2 HDD |
| Max Hdd Size | @16TB |
| Raid | RAID1 |
| Display | 1HDMI/1VGA |
| Audio In | 1 IN |
| Audio Out | 1 OUT |
| Alarm In | 4 IN |
| Alarm Out | 1 OUT |
| Usb Port | USBx3 |
| Voltage | 12VDC |
| Serial Interface | RS485 |
