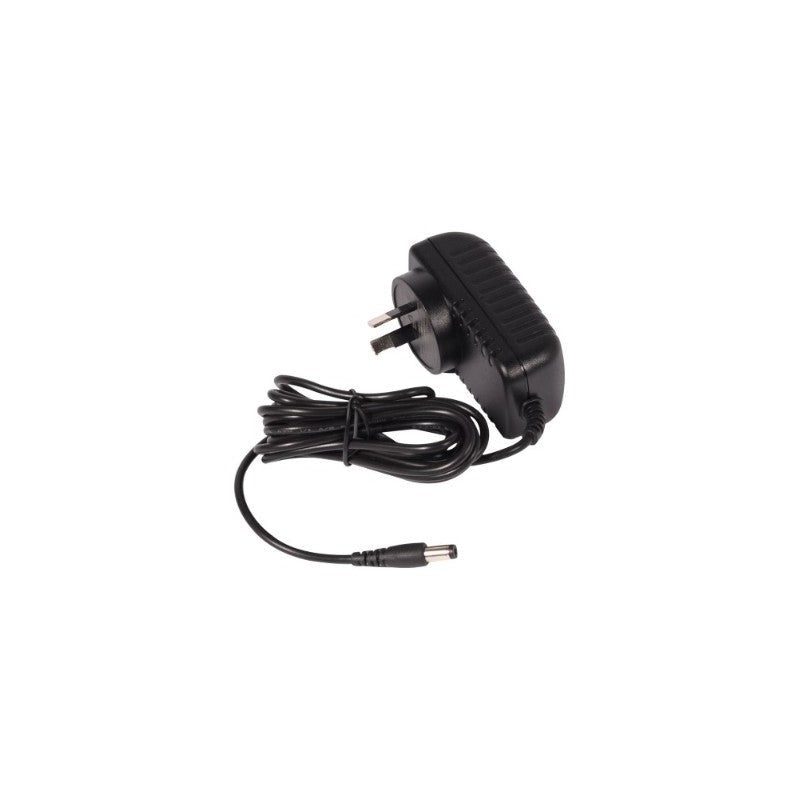

Hikvision 12v DC 2500ma Sm Psu Plug Pack (30g)
SKU: T122521G
$85.20
The Hikvision 12v DC 2500ma Sm Psu Plug Pack (30g) is a compact switch mode power supply unit engineered to deliver a stable 12V DC output at 2500mA for security devices. Designed for wall-mounted applications, this unit provides a reliable power source for HDTVI cameras and access control panels without the requirement for a central power distribution system.
Key Features
- Delivers a stable 12V DC output at 2500mA with a maximum output power of 30W
- Accepts a wide 90V-264V AC input voltage range to accommodate variable mains conditions
- Compliant with AS/NZS3112 electrical safety standards for active and neutral pins
- Compact switch mode design measuring 55(w) x 96(h) x 42(d)mm for lightweight wall outlet mounting
- Optimized for powering individual HDTVI cameras and other 12V DC-powered security devices
- 30G series housing width differs from narrower models, potentially limiting side-by-side installation in standard double outlets
Technical Specifications
| Output Voltage | 12V DC |
| Output Current | 2500mA (2.5A) |
| Maximum Output Power | 30W |
| AC Input Voltage Range | 90V-264V AC |
| Power Supply Type | Switch Mode Power Supply (SMPS) |
| Mounting Style | Wall mounted plug pack |
| Dimensions | 55(w) x 96(h) x 42(d)mm |
| Pin Compliance | AS/NZS3112 – insulated active and neutral pins |
| Series | 30G |
| Weight | Lightweight and compact design |
| Double Outlet Fit | 30G series housing width does not allow 2 units side by side in a standard double outlet |
| SKU | T1225-21G |
No downloads available for this product.
